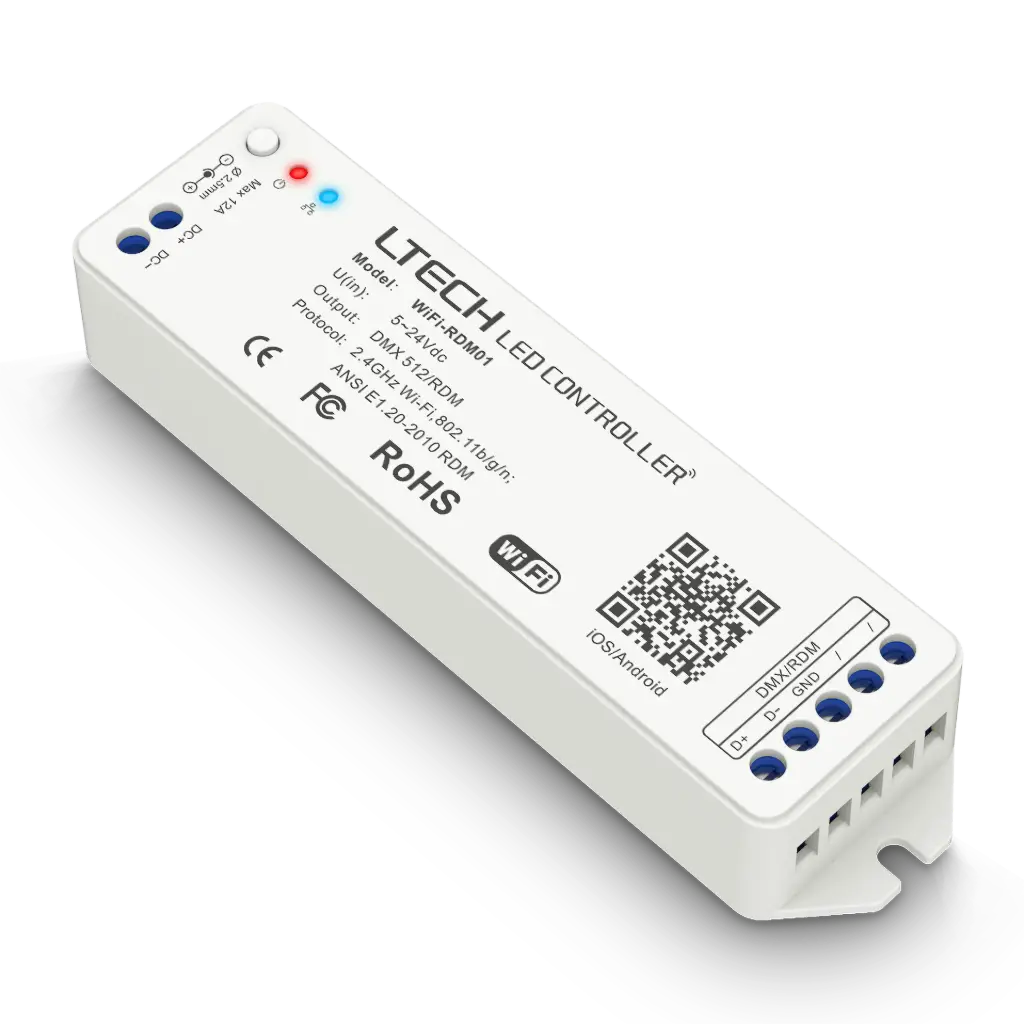

LTECH RDM Programmer - WiFi-RDM01

The WiFi-RDM01 is an RDM master controller that allows browsing and setting equipment parameters via the RDM standard protocol. Using a WiFi module, it enables wireless control through a mobile app and supports remote firmware upgrades for easy access to the latest features. It is compatible with other RDM-compliant products without affecting their normal operation on the bus.

Input Voltage: 5~24V DC
Output Signal: DMX512 / RDM
Wireless Type: 2.4GHz Wi-Fi, 802.11b/g/n
Working Temperature: -25°C~50°C
Dimensions: L125 x W33 x H20 (mm)
Weight: 110g

Control
- DMX
Control
- RF
Input Voltage
- DC (5-24 V)
Input Voltage Domain
- DC
Working Temperature
- -25°C to 50°C
Weight (g)
- 110g
Dimensions (LxWxH) (mm)
- L125xW33xH20(mm)
Package Size
- L127xW35xH24(mm)

Internal Reference: 2270000
Barcode: 6971379111199
Internal Reference: 2270000
HS Code: 85371098

General

3 specifications

Control

DMX · RF

Input Voltage

DC (5-24 V)

Input Voltage Domain

Operating

1 specification

Working Temperature

-25°C to 50°C

Physical

3 specifications

Weight (g)

Dimensions (LxWxH) (mm)

L125xW33xH20(mm)

Package Size

L127xW35xH24(mm)

User Manuals

1 file

WiFi-RDM01 User Manual.pdf

1.7 MB

Download

[2270000] LTECH RDM Programmer - WiFi-RDM01

€ 95.93
