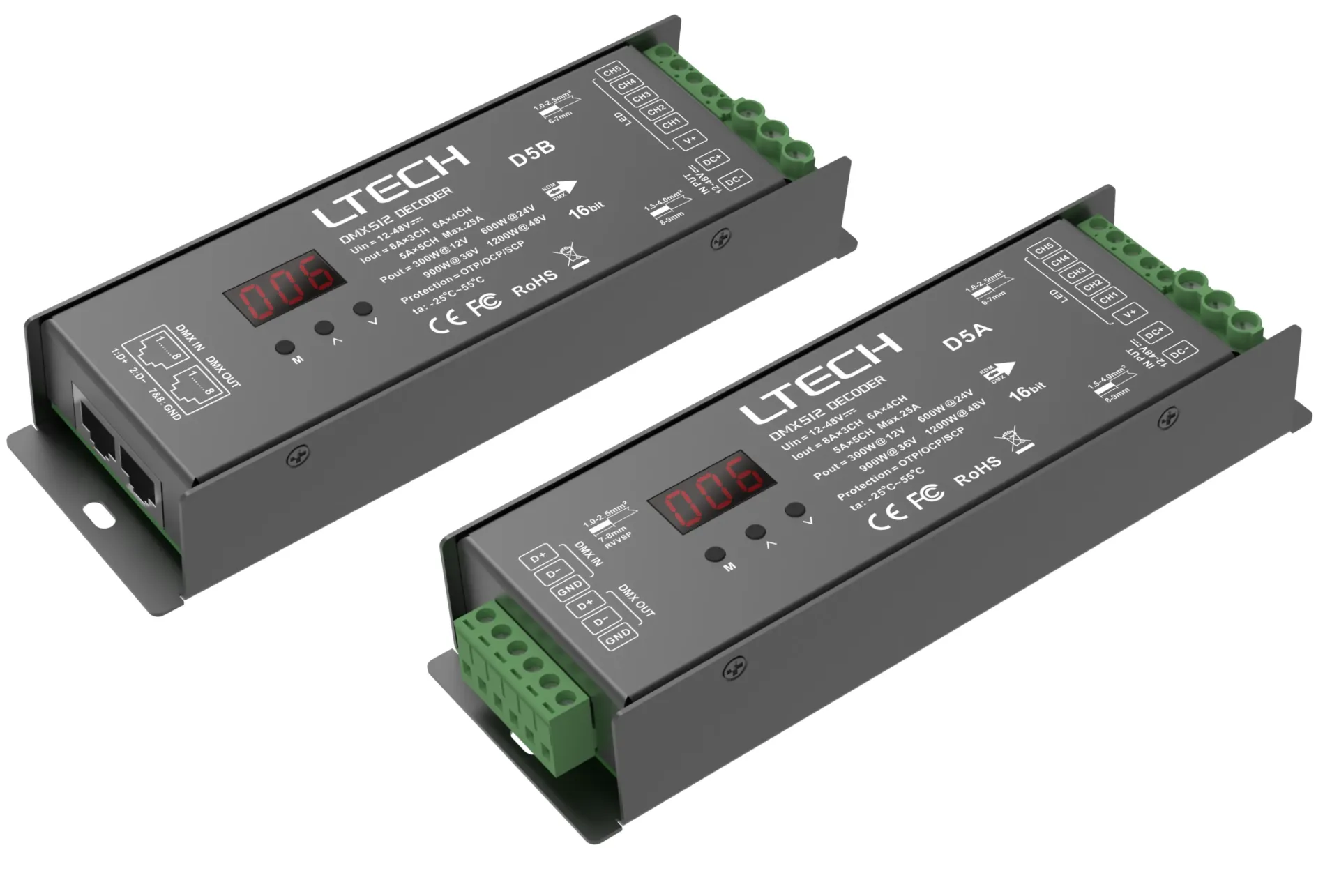

The D5 series DMX/RDM controller features standard DMX/RDM interfaces with address setting via digital display and buttons. It supports RDM protocol for parameter browsing and DMX address changes via an RDM master or mobile app. Switchable between DMX decoder and control modes, it offers preset lighting effects, 10 dynamic modes with 8 speed levels, 255 brightness levels, and selectable 16- or 8-bit gray scale. Adjustable PWM frequency, screen timeout, and automatic protection against short circuit, over-temperature, over-current, and reverse polarity ensure reliable operation.
• Input Signal: DMX512, RDM
• Input Voltage: 12-48V
• Output Type: Constant Voltage
• Output Current: 8A × 3CH 6A × 4CH 5A × 5CH Max.25A
• Output Voltage: 5 × (12-48V)
• DMX Signal Port: RJ45
• Working Temperature: -25°C~55°C
• Dimensions: L175 × W55 × H30 (mm)
• Weight: 370g
