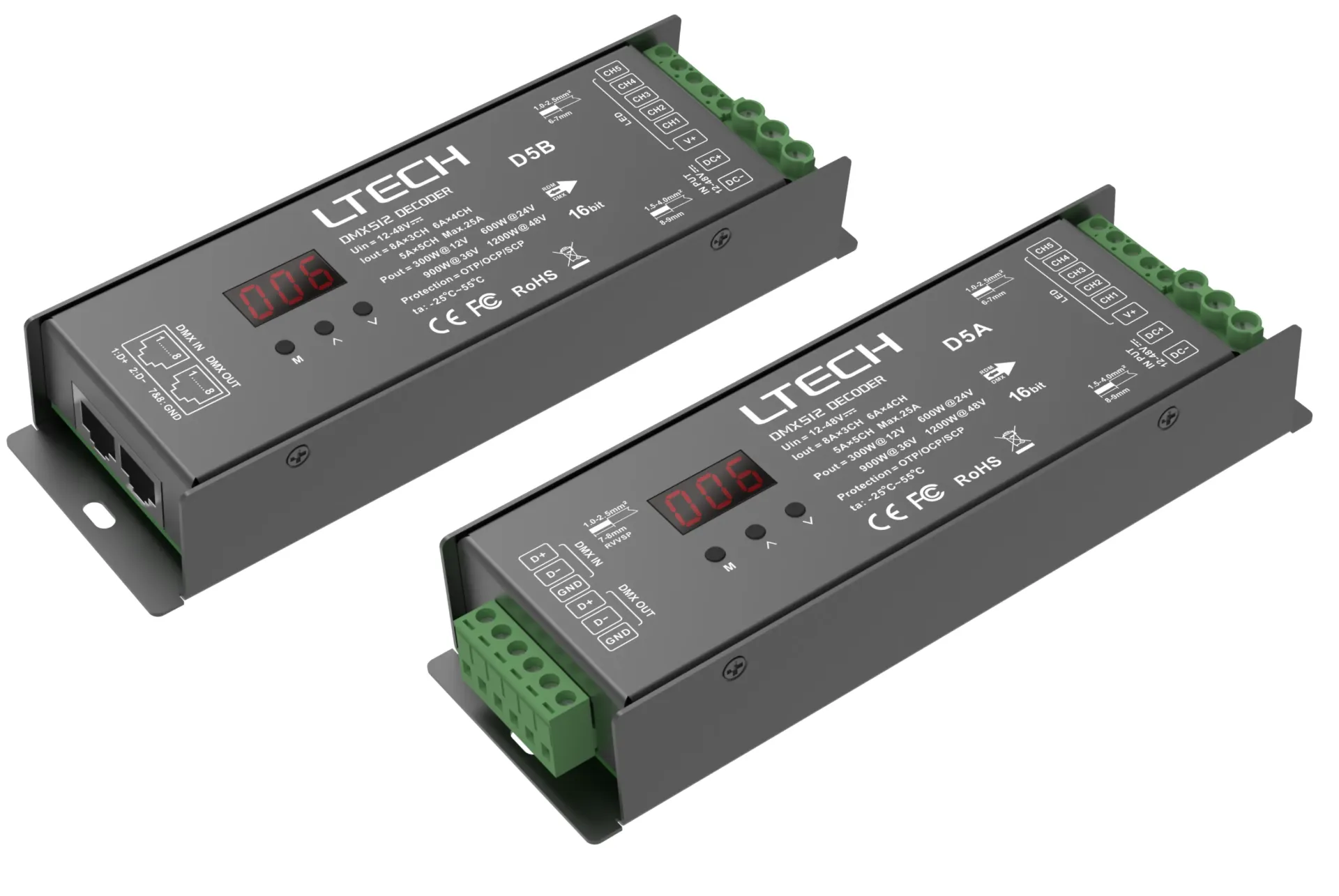

LTECH DMX LED driver CV 3x8A / 4x6A / 5x5A screw terminal - D5A

LTECH DMX LED driver CV 3x8A / 4x6A / 5x5A screw terminal - D5A


Constant Voltage 5 Channel DMX/RDM Decoder
Standard DMX/RDM interfaces with address setting via digital display and buttons. It supports RDM protocol for parameter browsing and DMX address changes via an RDM master or mobile app. Switchable between DMX decoder and control modes, it offers preset lighting effects, 10 dynamic modes with 8 speed levels, 255 brightness levels, and selectable 16- or 8-bit gray scale. Adjustable PWM frequency, screen timeout, and automatic protection against short circuit, over-temperature, over-current, and reverse polarity ensure reliable operation.

€ 0.00 € 0.00

  • Control
  • Input Voltage
  • Input Voltage Domain
  • Channels
  • Channels
  • Output Voltage
  • Output Power Range
  • Current load/ ch
  • Curent load max
  • Dimming Range
  • Weight
  • Dimensions
  • Package Size
  • Working Temperature
Add to cart
Contact Us

Internal Reference: 2285601
HS Code: 85044031

01
General
9 specifications
Control
DMX
Input Voltage
12-48 V
Input Voltage Domain
DC
Channels
3 · 4
Output Voltage
12-48 V
Output Power Range
1200 W
Current load/ ch
6Ax4CH/8Ax3CH
Curent load max
25A
Dimming Range
0-100%
02
Operating
1 specification
Working Temperature
-25°C to 55°C
03
Physical
3 specifications
Weight
370g
Dimensions
L175xW55xH30(mm)
Package Size
L188xW61xH40(mm)
01
All Files
1 file
PDF
D5A User Manual
1.4 MB
Download
