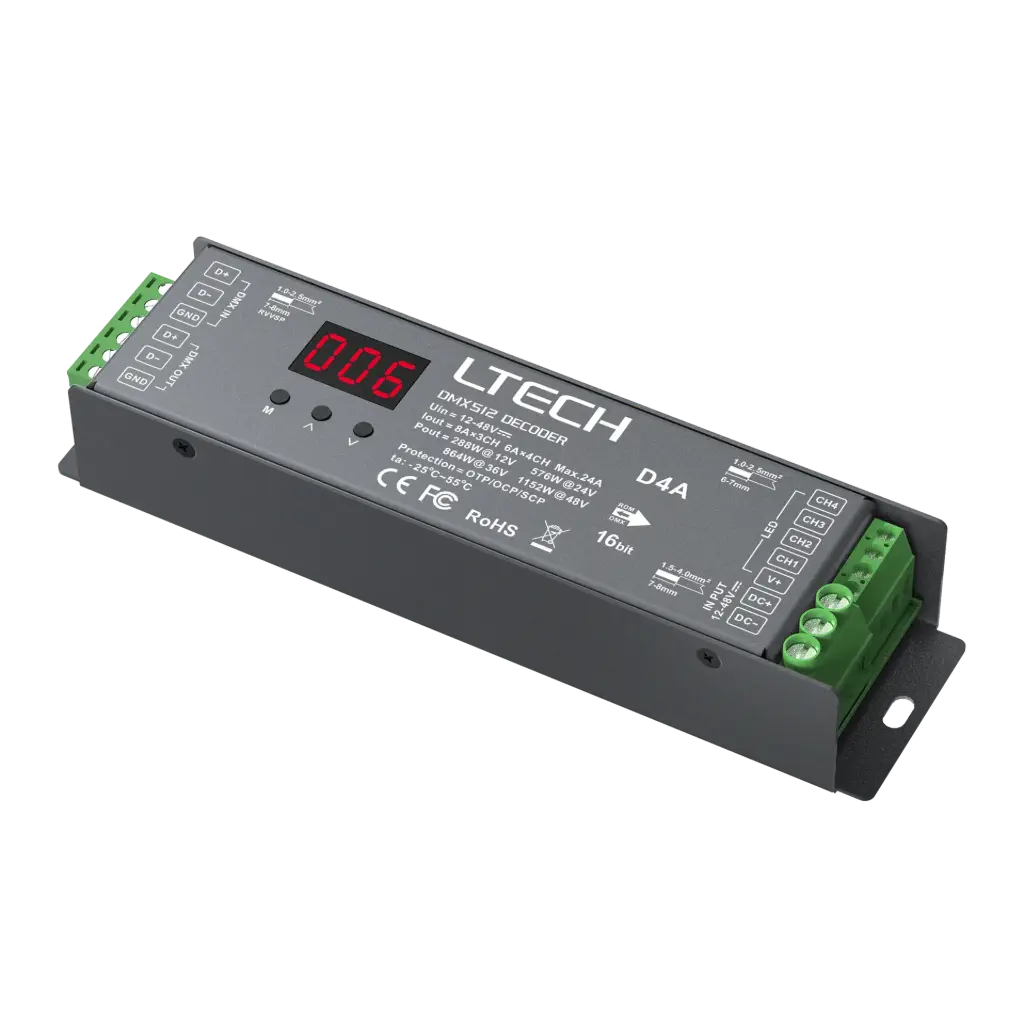

This DMX/RDM controller features standard interfaces, with address setting via digital display and buttons. It supports RDM protocol for browsing parameters and changing DMX addresses through an RDM master or mobile app. Switchable between DMX and custom modes, it offers 1-4 DMX channel outputs, standard or smooth dimming, 16- or 8-bit gray scale, 10 lighting effects with 8 speed levels, and 255 brightness levels. Adjustable PWM frequency, screen timeout, and automatic protection against short circuit, over-temperature, and over-current enhance reliability.
• Input Voltage: 12-48V
• Output Type: Constant Voltage
• Output Current: 8A×3CH 6A×4CH Max.24A
• Output Voltage: 4×(12-48V)
• Output Power: 288W@12V 576W@24V 864W@36V 1152W@48V
• DMX Signal Port: Green terminal
• Working Temperature: -25℃-55℃
• Dimensions: L175 × W46 × H30 (mm)
• Weight: 325g
