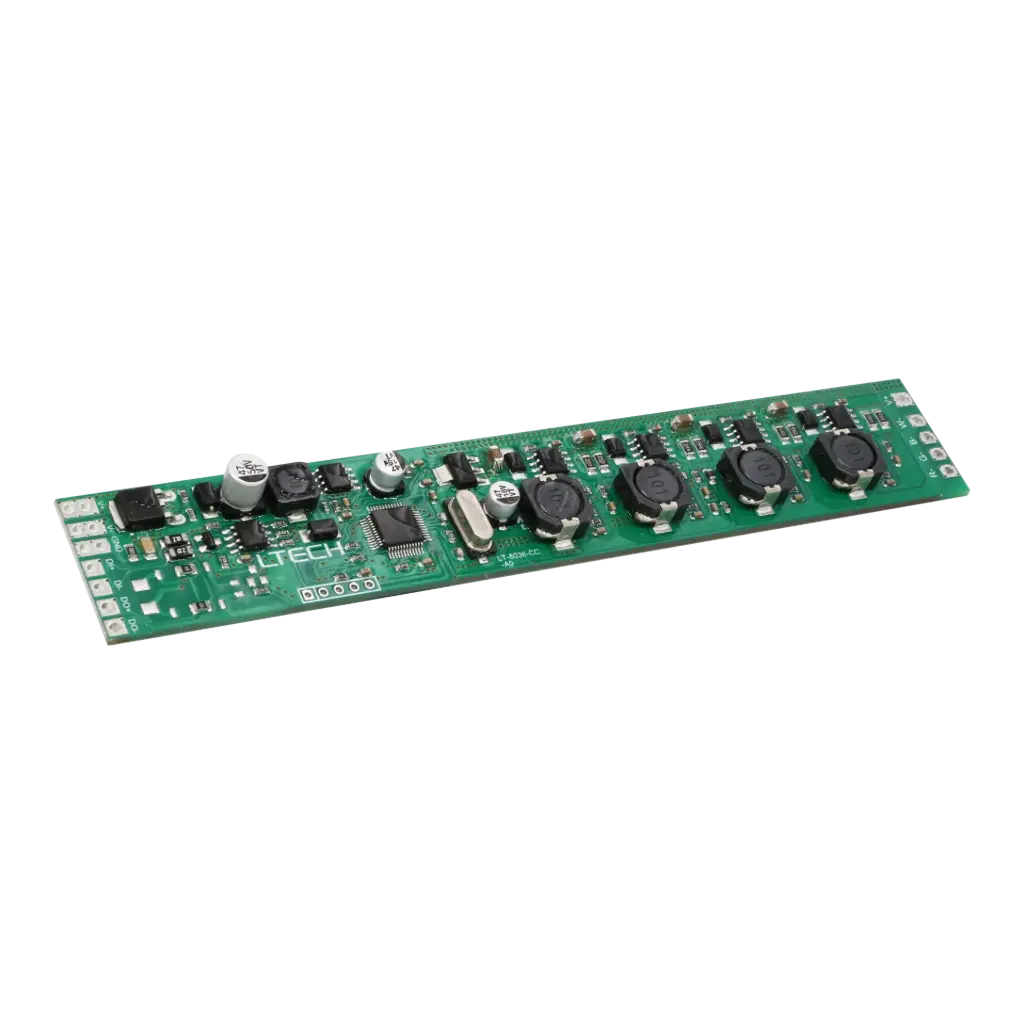

LTECH DMX LED driver PCB CC - LT-8036-1000


DMX/RDM CC Decode Circuit Board
A PCB CC driver designed for high-power DMX512 wall washers and project lights, compatible with single-color, tunable white, RGB, and RGBW LEDs. It supports long-range RDM management without coding lines and can be configured via the WiFi-RDM01 app for DMX address, dimming range, mode, and firmware updates. Offline sync mode allows connected DMX devices to play preset modes automatically when no DMX signal is present, making it ideal for small control systems.

€ 0.00 € 0.00 /Unit

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Current
  • Output Voltage
  • Output Power
  • Curent load max
  • Dimming Range
  • Weight (g)
  • Dimensions (LxWxH) (mm)
Add to cart
Contact Us

Internal Reference: 2900112
Barcode: 6971379116057
Internal Reference: 2900112
HS Code: 85371098

01
General
9 specifications
Control
DMX
Channels
4
Input Voltage
DC (12-36 V)
Input Voltage Domain
DC
Output Current
1000mA
Output Voltage
7.5-33 V
Output Power
132 W
Curent load max
4A
Dimming Range
0-100%
02
Operating
1 specification
Working Temperature
-30°C to 65°C
03
Physical
2 specifications
Weight (g)
30g
Dimensions (LxWxH) (mm)
L155×W26×H10(mm)
01
User Manuals
1 file
PDF
LT-8036-1000 User Manual.pdf
2.5 MB
Download
