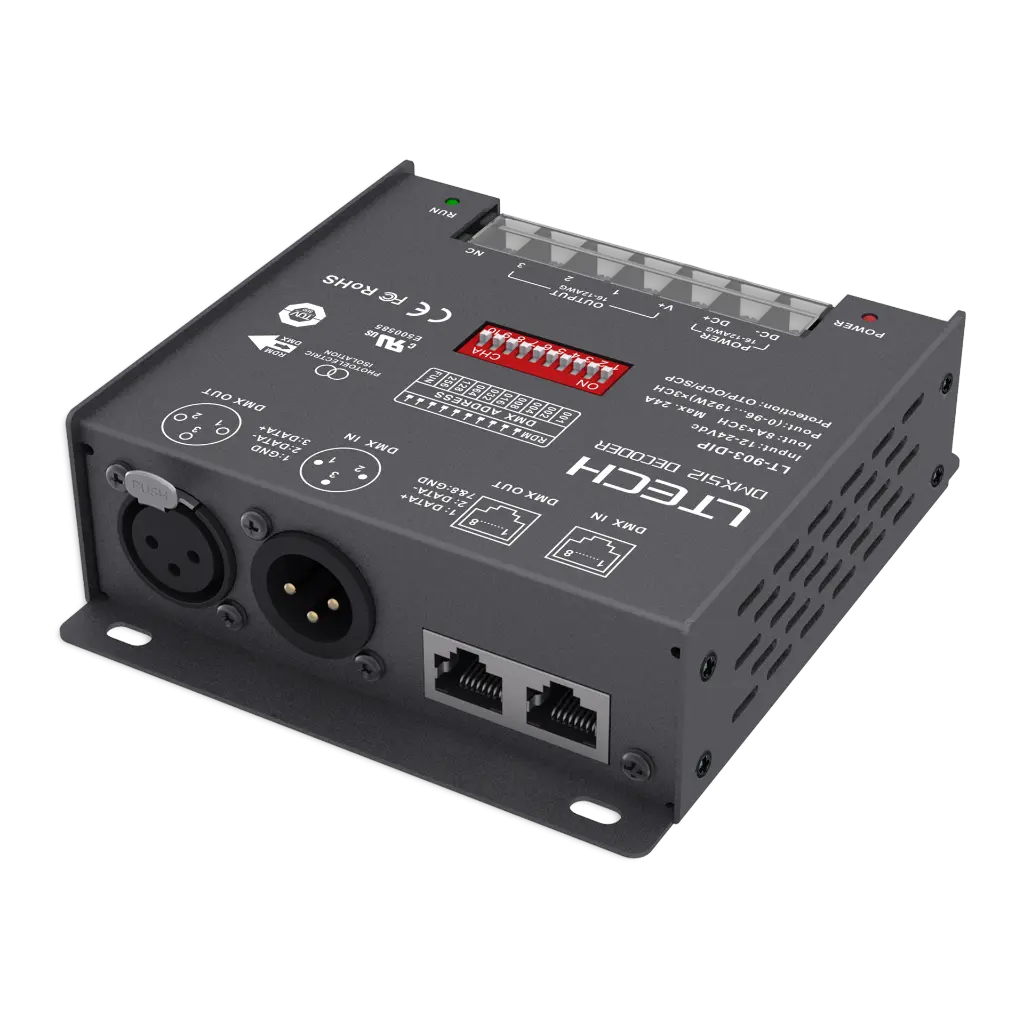

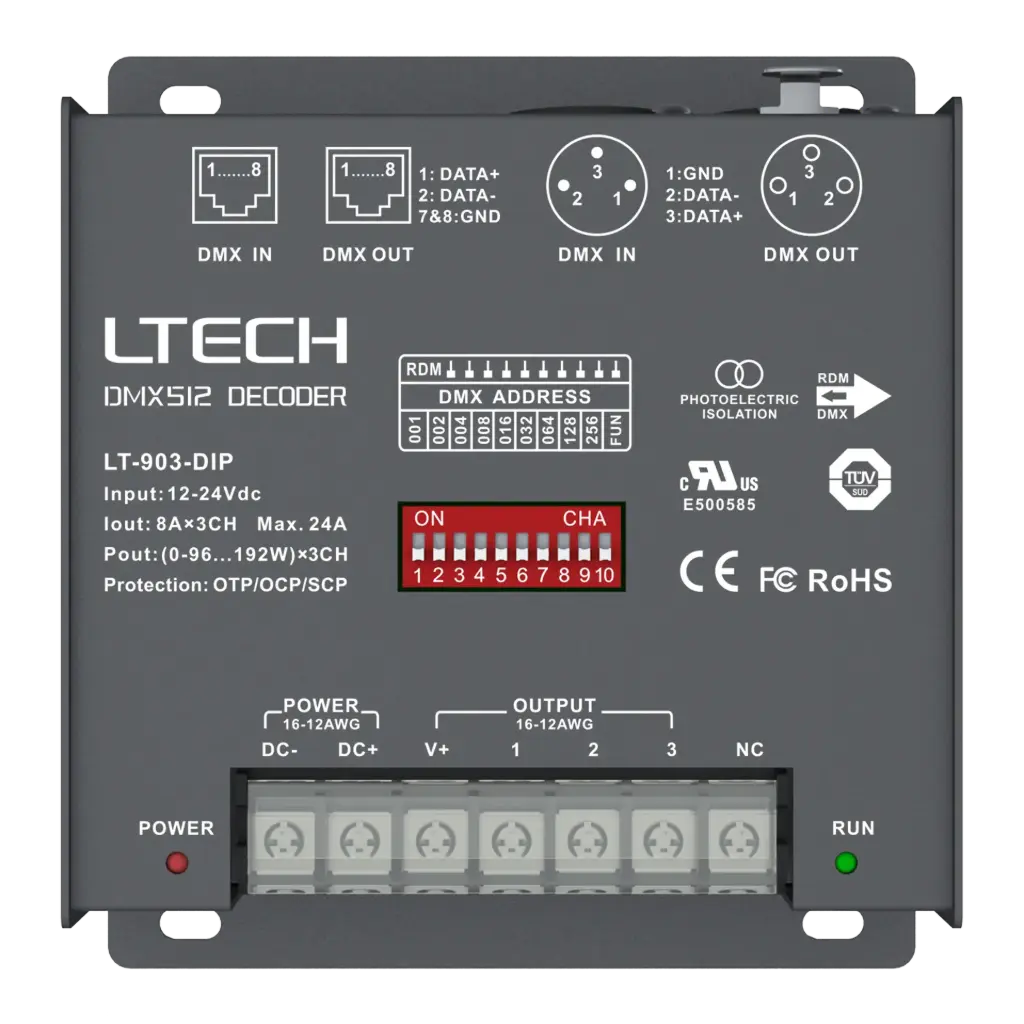

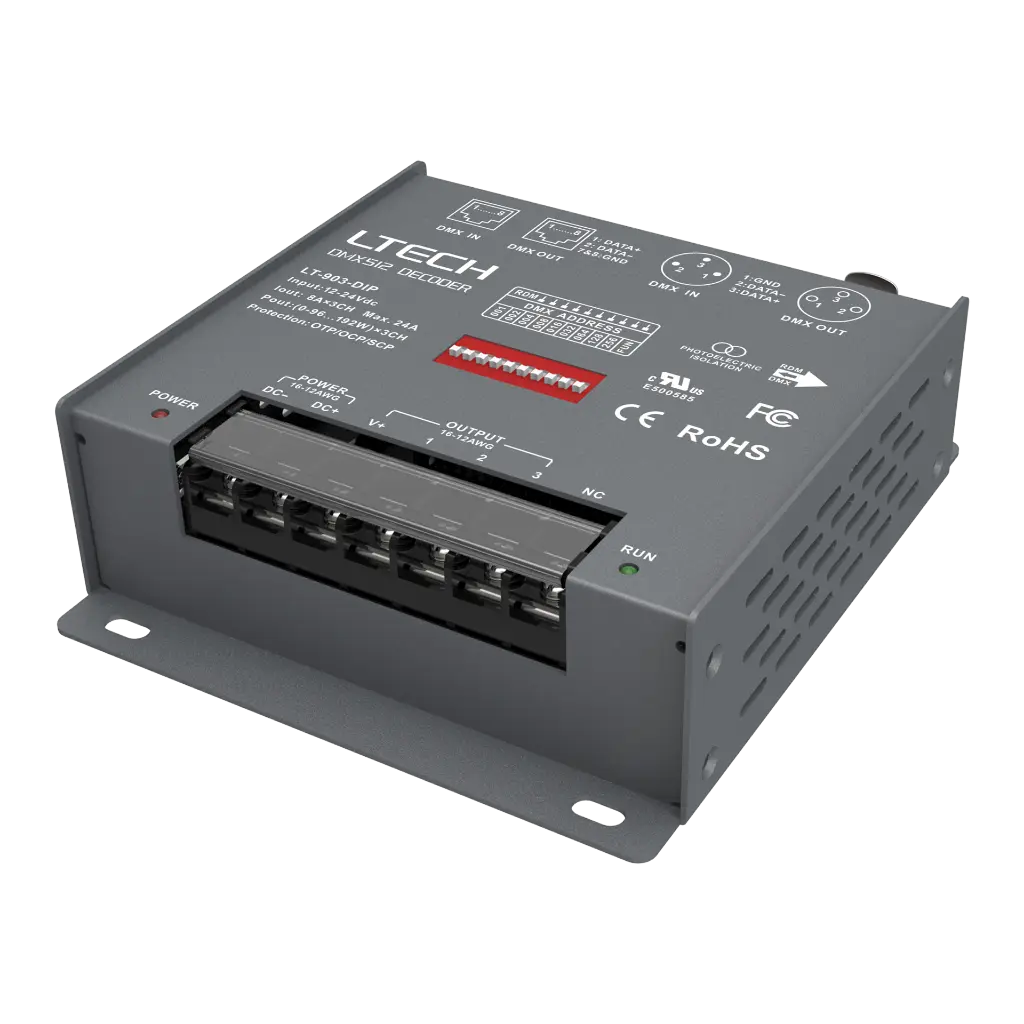

LTECH DMX/RDM LED driver CV 3x8A DIP Switch - LT-903-DIP


This 3-channel DMX/RDM decoder provides up to 8A per channel (576W total) and features 3-pin XLR and RJ45 DMX interfaces with photoelectric isolation for reliable signal transmission and reduced interference. It supports RDM remote management, enabling parameter browsing, DMX address setup, and equipment recognition via an RDM master console.

  • Input Voltage: 12-24Vdc
  • Current Load: 8A x 3CH Max. 24A
  • Photoelectric Isolation: Yes
  • Working Temperature: -30°C~65°C
  • Dimensions: L122 x W110 x H37 (mm)
  • Weight: 550g
€ 0.00 € 0.00

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Output Voltage
  • Output Power Range
  • Current load/ ch
  • Curent load max
  • Version
  • Certificates
  • Weight
  • Dimensions
  • Package Size
  • Working Temperature
Add to cart
Contact Us

Internal Reference: 2279121
HS Code: 85044095

01
General
9 specifications
Control
DMX
Channels
3
Input Voltage
12-24 V
Input Voltage Domain
DC
Output Voltage
12-24 V
Output Power Range
576
Current load/ ch
8A
Curent load max
24A
Version
DMX/RDM
02
Operating
2 specifications
Certificates
UL
Working Temperature
-30°C to 65°C
03
Physical
3 specifications
Weight
550g
Dimensions
L122×W110×H37(mm)
Package Size
L127×W123×H41(mm)
01
All Files
1 file
PDF
LT-903-DIP User Manual.pdf
938 KB
Download
