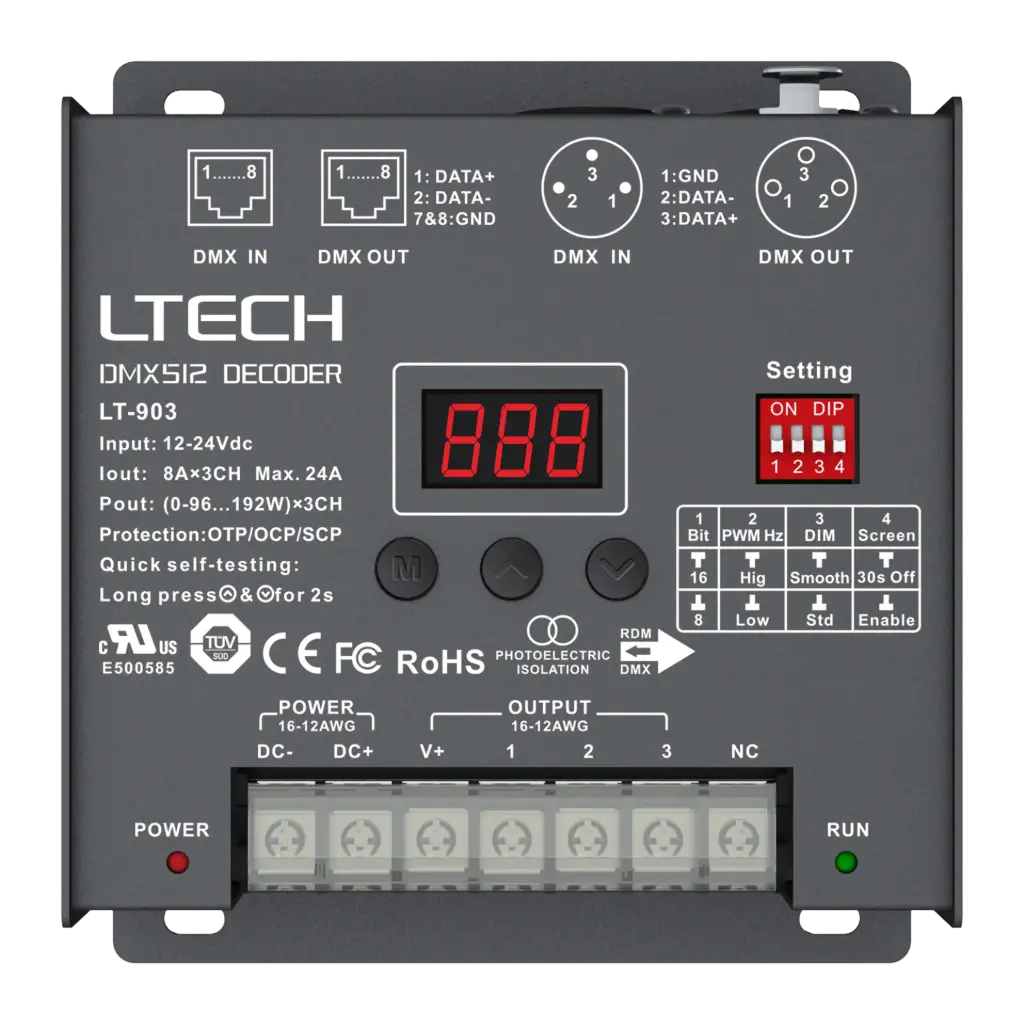

This controller features three output channels (up to 8A per channel, 576W total) and supports RDM for remote management via the master console. It offers easy operation with a digital display and touch buttons, 3-pin XLR and RJ45 DMX interfaces with photoelectric isolation for reliable signal transmission, and built-in protections against short circuit, overcurrent, and overheating. Additional features include fast self-testing, function.
- Input Voltage: 12-24Vdc
- Current Load: 8A x 3CH Max. 24A
- Photoelectric Isolation: Yes
- Working Temperature: -30°C~65°C
- Dimensions: L122 x W110 x H37 (mm)
- Weight: 550g
