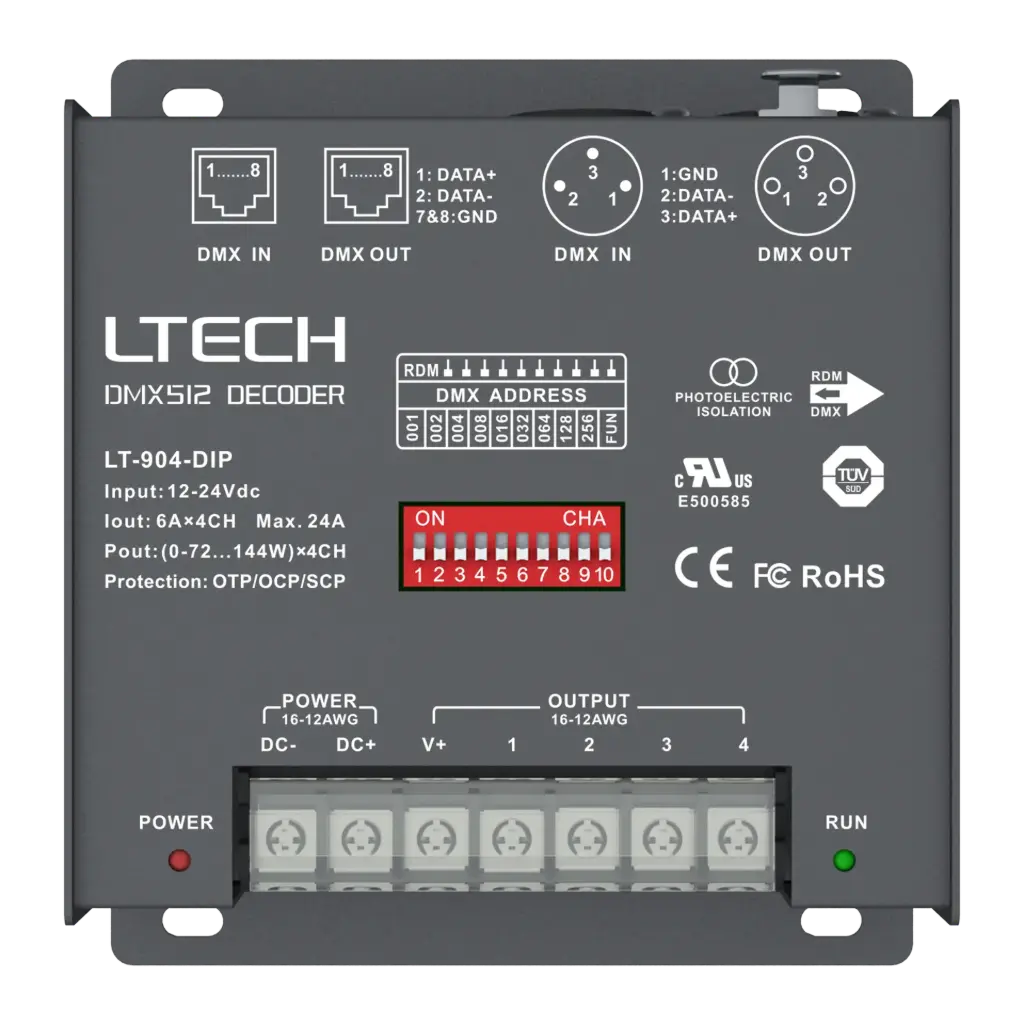

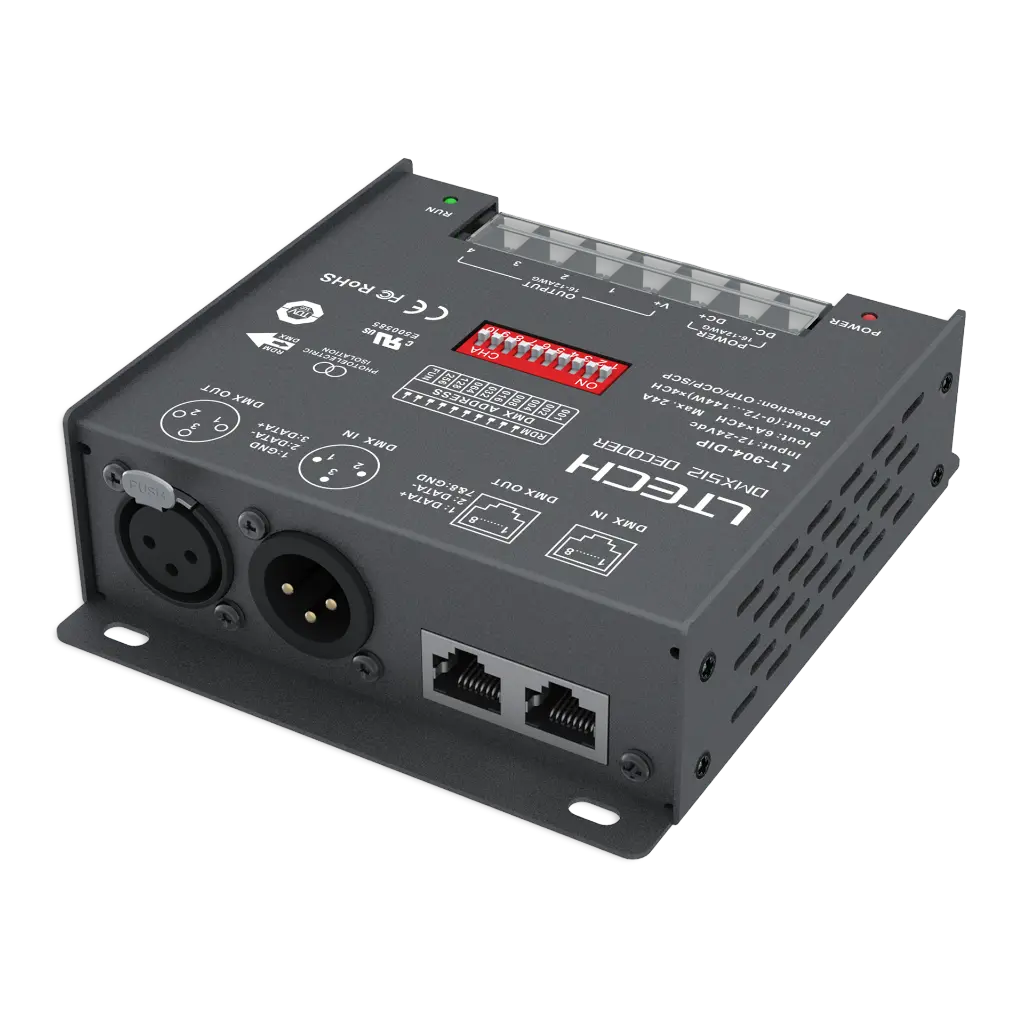

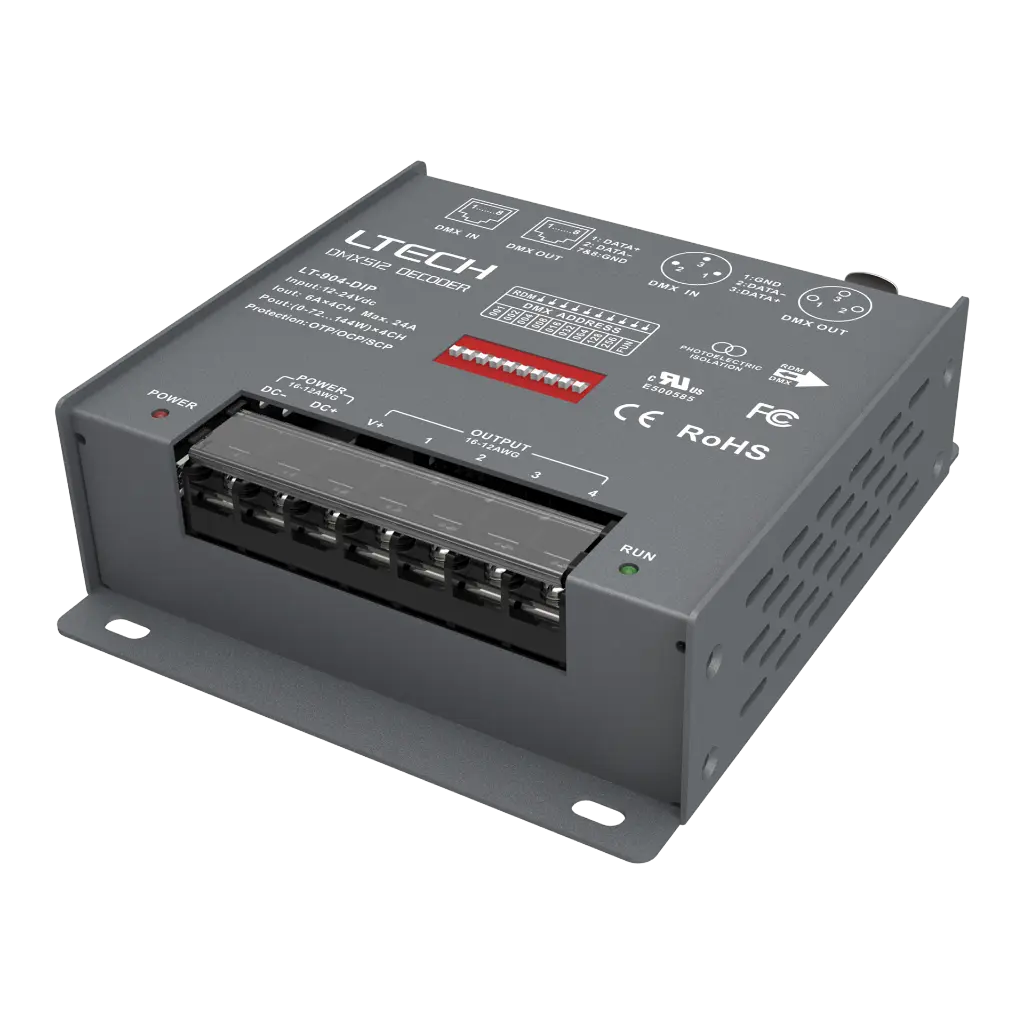

Features four output channels with up to 6A per channel and up to 576W output power. It includes 3-pin XLR and RJ45 DMX interfaces with photoelectric isolation for reliable signal transmission and strong anti-interference performance. Supporting the RDM protocol, it allows remote device management such as parameter monitoring, address setting, and device identification via an RDM master console. Built-in protection against short circuit, overcurrent, and overheating, along with fault warning functions, ensures safe and dependable operation.
- Input Voltage: 12-24Vdc
- Current Load: 6A x 4CH Max. 24A
- Photoelectric Isolation: Yes
- Working Temperature: -30°C~65°C
- Dimensions: L122 x W110 x H37 (mm)
- Weight: 550g
