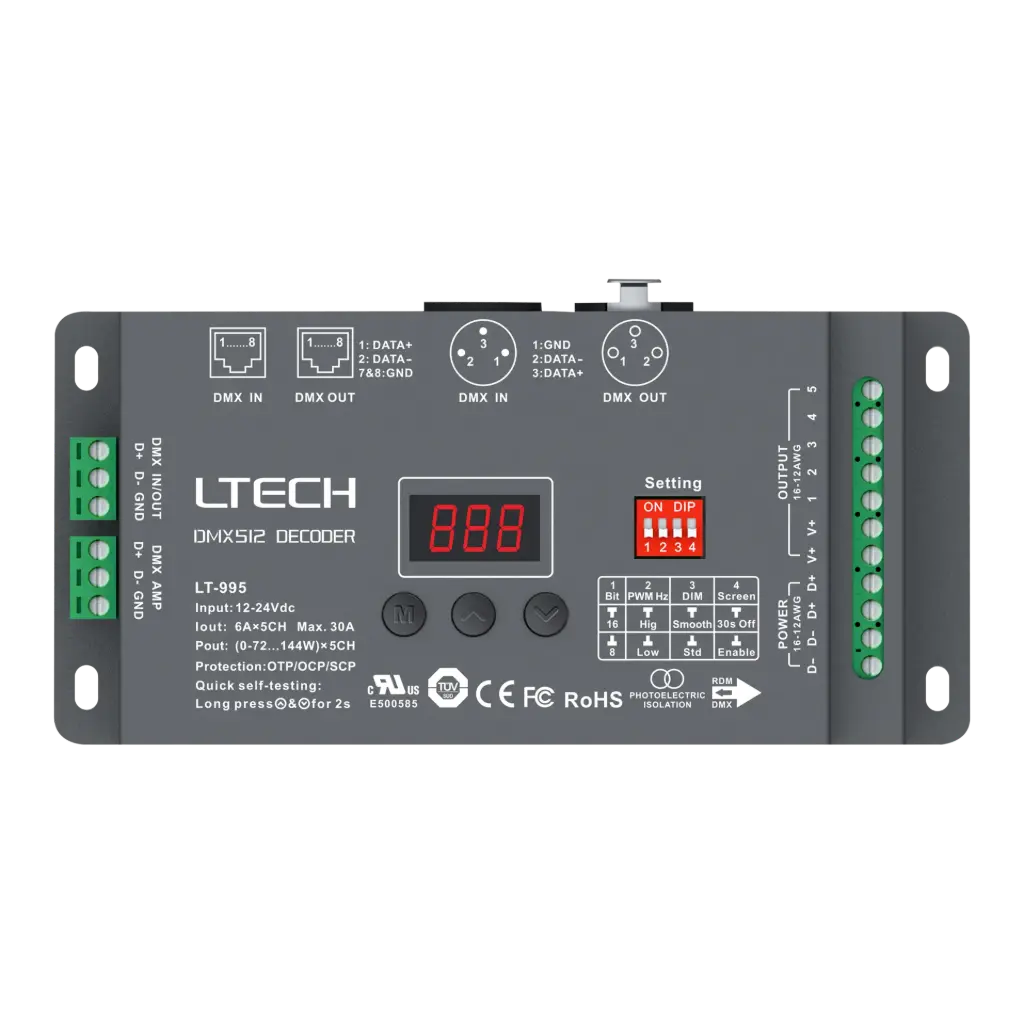

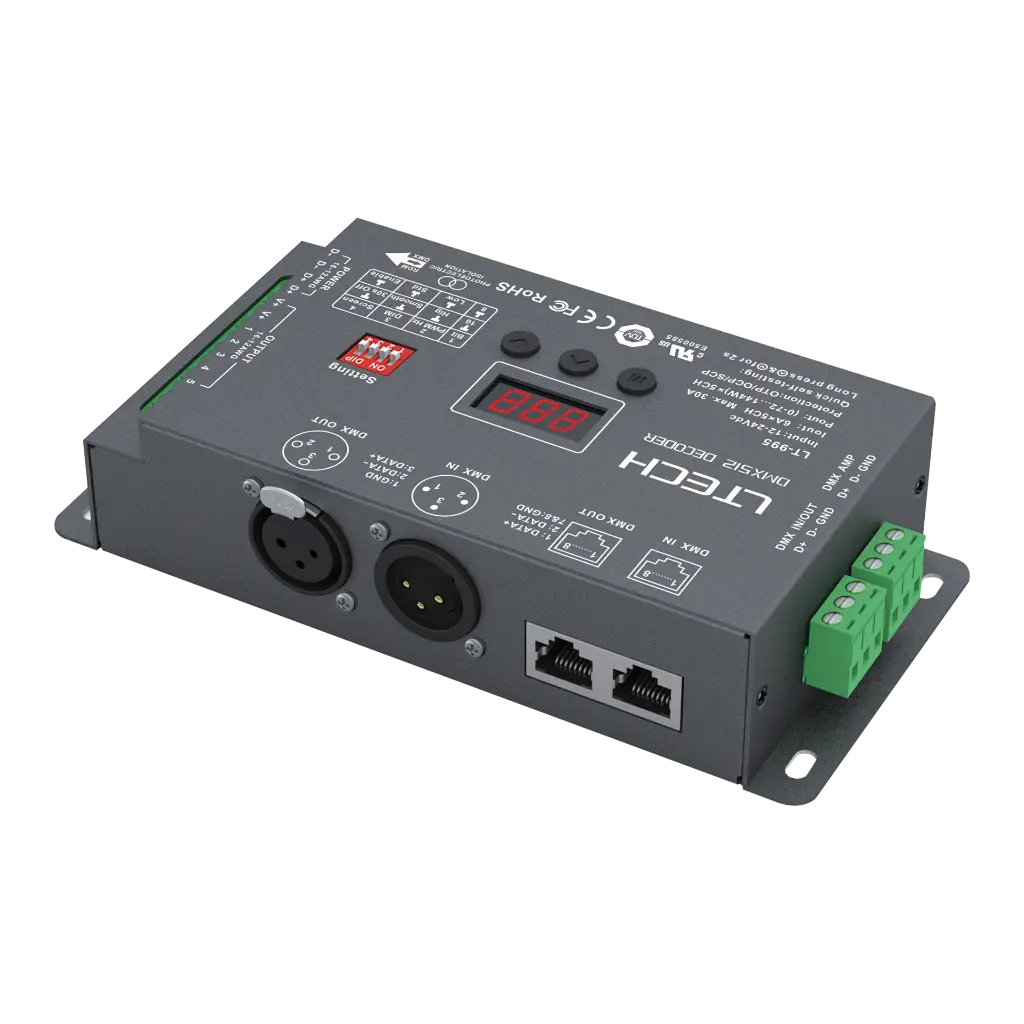

High-performance 5-channel DMX LED Driver with up to 6A per channel and 720W total output. Supports 3-pin XLR, RJ45 DMX, and green terminal connections with photoelectric isolation for stable, interference-free signal transmission. RDM remote management enables address setting and parameter control via an RDM console. Includes firmware upgrade support, fast self-testing, selectable PWM frequency, 8-bit or 16-bit dimming, and full protection against short circuit, overcurrent, and overheating.
- Input voltage: 12~24Vdc
- Current load: 6A × 5CH Max. 30A
- Photoelectric Isolation: Yes
- Working Temperature: -30°C~65°C
- Dimensions: L169 x W80 x H39 (mm)
- Weight: 550g
