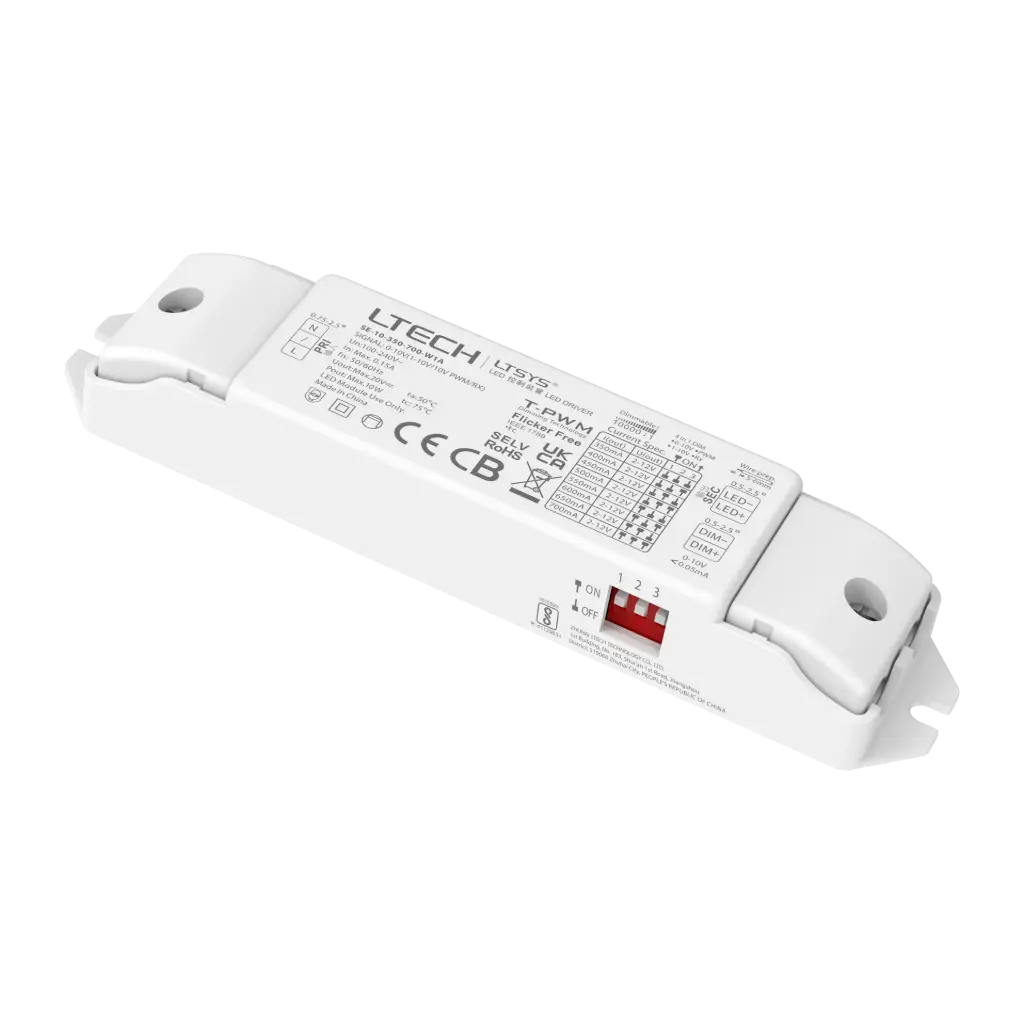

LED Intelligent Driver
This driver features T-PWM digital dimming for smooth, flicker-free performance and a comfortable visual experience with soft-on and fade-in functions. It automatically recognizes 0-10V and 1-10V input signals and offers quick current selection via DIP switch. Built with innovative thermal management for reliable power life protection, it includes safeguards against overheat, overload, and short circuit with automatic recovery. Designed for durability, it delivers up to 50,000 hours of service life.
• Input Voltage: 100~240V AC
• Input Current: 0.15A@115V AC, 0.1A@230V AC
• Output Voltage: 2~12V DC Max. 20V DC
• Output Current Range: 350~700mA
• Output Power: 0.7W~8.4W
• Dimming Range: 0-100%，0.01% dimming depth
• Dimming Interface: 0-10V (1-10V/10V PWM/RX), 0-10V
• Interface consumption: <0.05mA
• Working Temperature: ta: -30~50°C tc: 75°C
• Dimensions: L135 × W30 × H20 (mm)
• Weight (G.W.): 80g±10g
