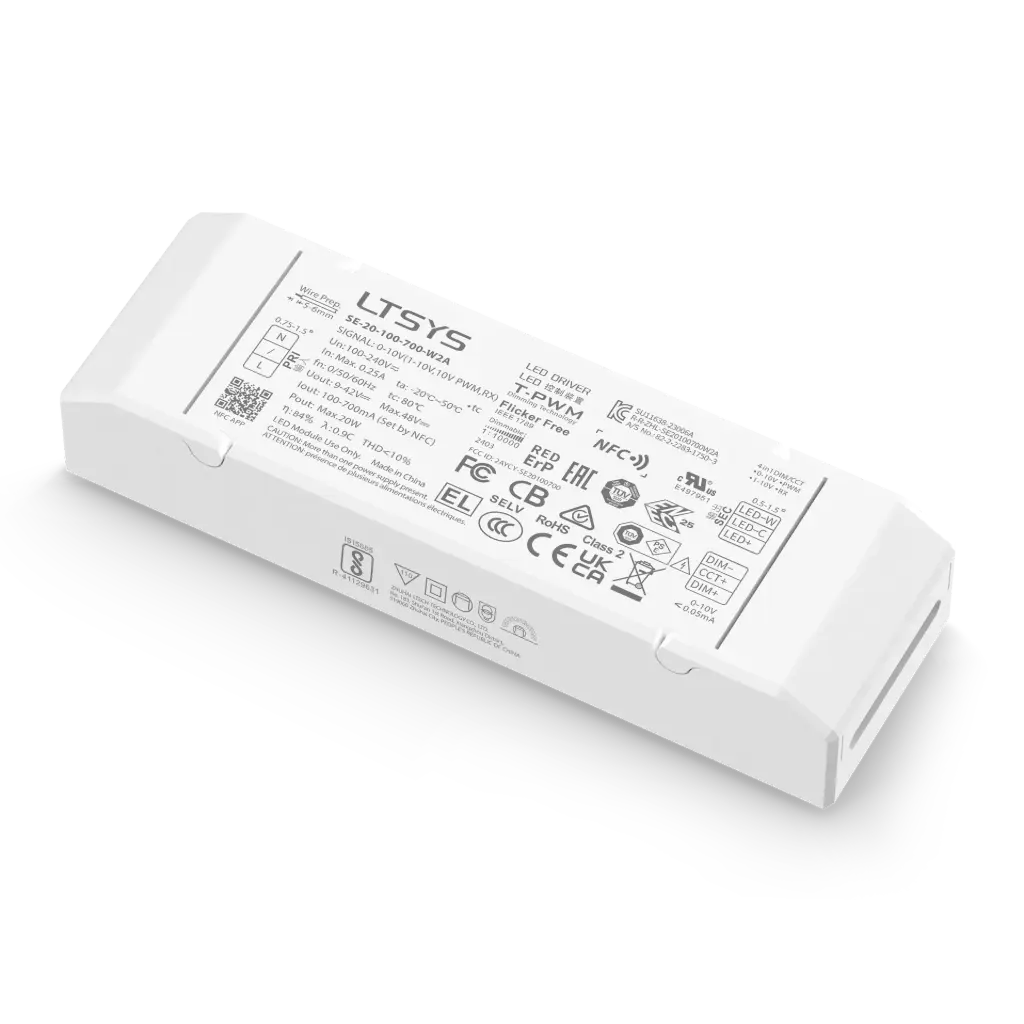

LTECH LTSYS Driver CC 0-10V 2CH 100-700mA 20W - SE-20-100-700-W2A

LTECH LTSYS Driver CC 0-10V 2CH 100-700mA 20W - SE-20-100-700-W2A


Intelligent Tunable White LED Driver (Constant Current)
This ultra-small, thin, and lightweight LED driver features a screwless end cap for easy installation. You can adjust the output current, dimming mode, and other settings via the APP, with output current adjustable in 1 mA steps. It has ultra-low consumption on 0-10 V ports <0.05 mA and includes a soft-on and fade-in dimming function to enhance visual comfort. Normal service life can reach 100,000 hours. 5-year warranty (Rubycon capacitor).

€ 0.00 € 0.00

  • IP Rating
  • Input Voltage Domain
  • Output Current
  • Channels
  • Control
  • Output Power Range
  • Input Voltage
  • Output Voltage
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Add to cart
Contact Us

Internal Reference: 2833122
HS Code: 85044031

General
Input Voltage Domain AC
Output Current 100-700mA
Channels 2
Control 0-10V
Output Power Range 20 W
Input Voltage 100-240 V
Output Voltage 9-42 V
Dimming Range 0-100% down to 0.01%
Operating
IP Rating IP20
Certificates CCC , TUV , FCC , CB , CE , KC , EAC , RCM , ENEC , UKCA , BIS , CUL , UL , ERP , PSE , RoHS
Warranty 5 Years(Rubycon capacitor)
  • SE-20-100-700-W2A User Manual.pdf
