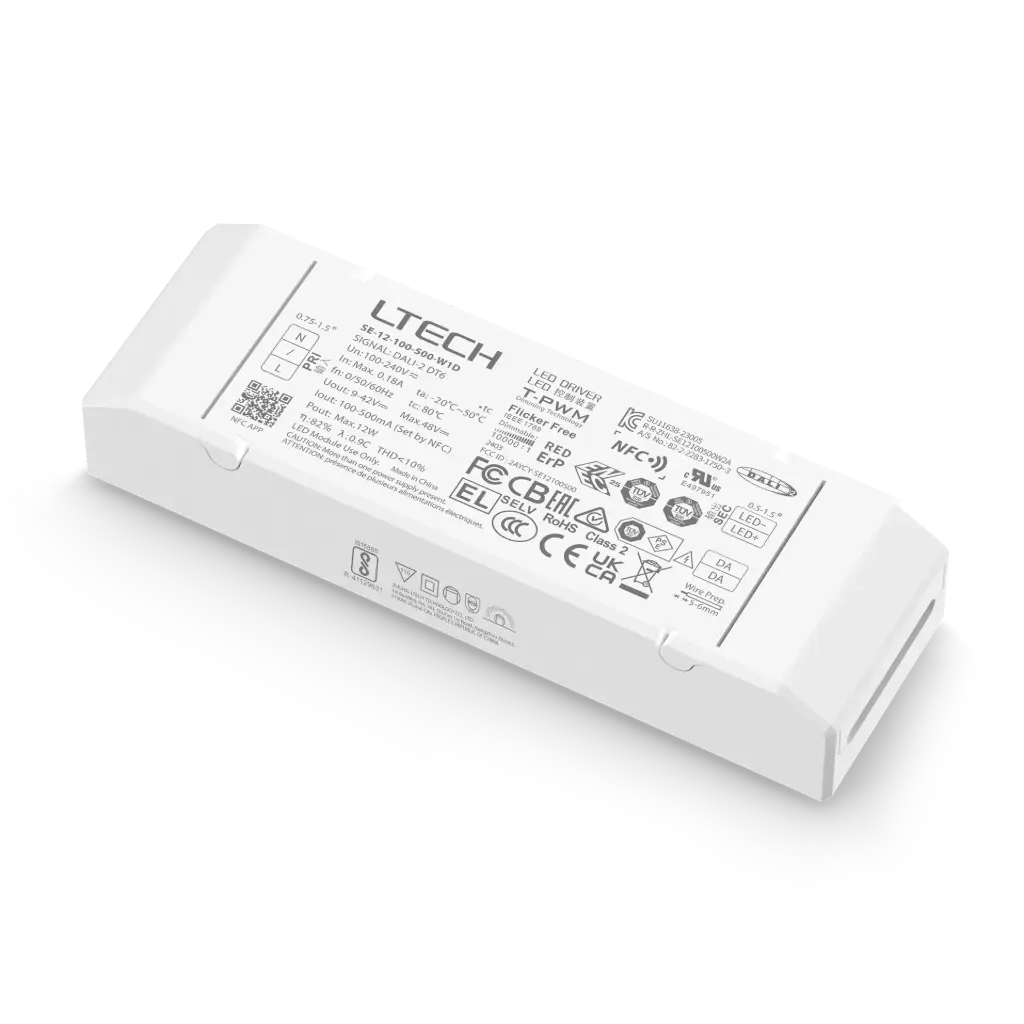

LTECH LTSYS Driver CC DALI DT6 1CH 100-500mA 12W NFC UL - SE-12-100-500-W1D

LTECH LTSYS Driver CC DALI DT6 1CH 100-500mA 12W NFC UL - SE-12-100-500-W1D


Intelligent LED Driver (Constant Current)
This ultra-small, thin, and lightweight LED driver features a screwless end cap for easy installation. You can adjust the output current, dimming mode, and other settings via the APP, with output current adjustable in 1 mA steps. It has ultra-low consumption on 0-10 V ports (<0.05 mA) and includes a soft-on and fade-in dimming function to enhance visual comfort. Normal service life can reach 100,000 hours.

€ 0.00 € 0.00

  • Input Voltage Domain
  • Output Current
  • Channels
  • Control
  • Output Power Range
  • Input Voltage
  • Output Voltage
  • Version
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Add to cart
Contact Us

Internal Reference: 2827007
HS Code: 85044031

General
Input Voltage Domain AC
Output Current 100-500mA
Channels 1
Control DALI
Output Power Range 12 W
Input Voltage 100-240 V
Output Voltage 9-42 V
Version DT6
Dimming Range 0-100% down to 0.01%
Operating
Certificates CCC , FCC , TUV , CB , CE , KC , EAC , RCM , ENEC , UKCA , BIS , CUL , UL , PSE , RoHS
Warranty 5 Years(Rubycon capacitor)
  • SE-12-100-500-W1D User Manual.pdf
