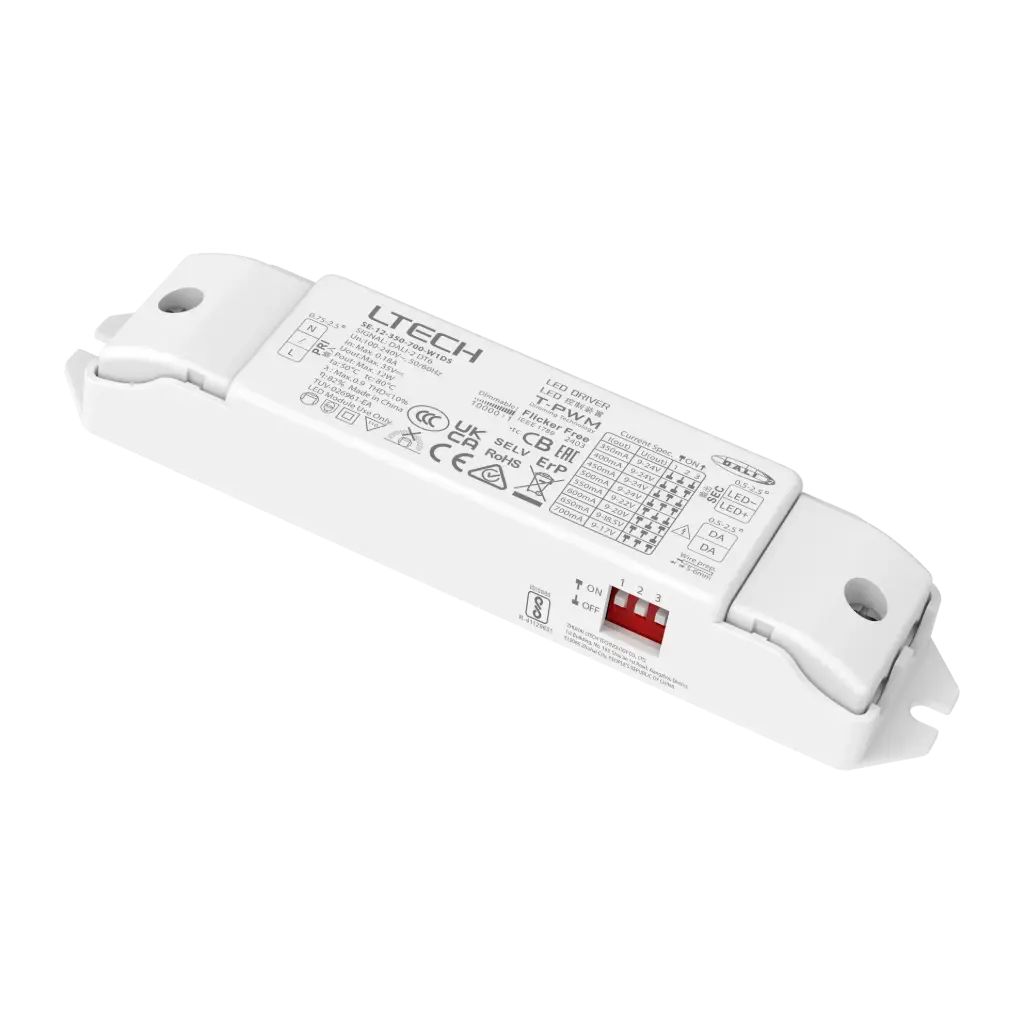

LTECH LTSYS Driver CC DALI DT6 1CH 350-700mA 12W UL - SE-12-350-700-W1DS


Intelligent LED Driver (Constant Current)
Compact and lightweight, this driver is built with SAMSUNG/COVESTRO’s V0 flame-retardant PC materials and complies with DALI IEC62386-101, 102, 207 standards. It supports Class 2 LED Driver, Safety Extra Low Voltage (SELV), soft-on and fade-in dimming, and advanced T-PWM™ technology for smooth, flicker-free lighting. With multiple current levels, wide voltage adaptability, and automatic protections, it’s suitable for Class Ⅰ/Ⅱ/Ⅲ indoor fixtures. Offering up to 100,000 hours of normal service life and backed by a 5-year warranty (Rubycon capacitor), it ensures reliability and comfort for modern lighting applications.

  • Input Voltage: 120-300Vdc, 100-240Vac
  • Input Current: ≤0.18A/115Vac (at full load), ≤0.08A/230Vac (at full load)
  • Output Voltage: 9-24Vdc
  • Output Current Range: 350~700mA
  • Output Power: 3.15W~12W
  • Dimming Interface: DALI DT6
  • Working Temperature: ta: -20~50°C tc: 80°C
  • Dimensions: L135 × W30 × H20 (mm)
  • Weight (G.W.): 80g±10g
€ 0.00 € 0.00

  • Control
  • Input Voltage
  • Input Voltage Domain
  • Output Current
  • Channels
  • Output Voltage
  • Output Power Range
  • Version
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty

Internal Reference: 2822000
HS Code: 85044031

Control
DALI
Input Voltage
100-240 V
Input Voltage Domain
AC
Output Current
350-700mA
Channels
1
Output Voltage
9-24 V
Output Power Range
12 W
Version
DT6
Dimming Range
0-100% down to 0.01%
Certificates
CCC · CB · CE · KC · EAC · RCM · UKCA · BIS · ERP · RoHS · UL
Warranty
5 Years
PDF
SE-12-350-700-W1DS User Manual.pdf
1.4 MB
Download
