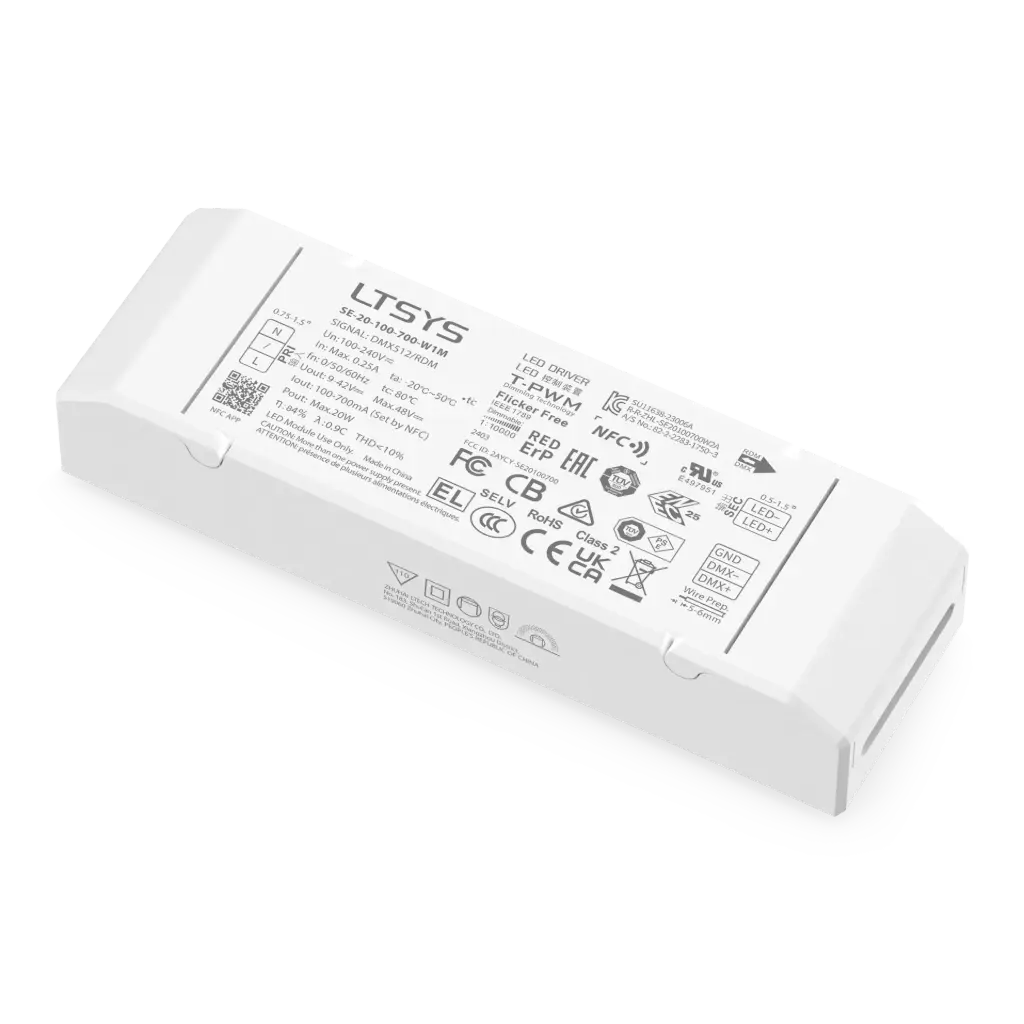

LTECH LTSYS Driver CC DMX 1CH 100-700mA 20W NFC - SE-20-100-700-W1M


Intelligent LED Driver (Constant Current)
Ultra-small, lightweight LED driver with a screwless end cap, made from SAMSUNG/COVESTRO V0 flame-retardant PC. Features adjustable output current in 1 mA steps and supports RDM protocol. Includes soft-on and fade-in dimming, T-PWM™ super deep dimming down to 0.01%, and flicker-free operation with high-frequency exemption. Complies with EU ErP standby <0.5 W, with automatic 0 V output when no load is detected. Protects against overheat, overvoltage, overload, and short circuits. Suitable for Class I/II/III indoor fixtures, with 100,000-hour life and 5-year warranty. Output current, DMX address, and other parameters can be set via the App.

  • Input Voltage: 100-240Vdc / 100-240Vac
  • Output Voltage: 9-42Vdc Max. 48Vdc
  • Output Current: 100-700mA
  • Output Range: 0.9W-20W
  • Dimming Range: 0.1~100%, down to 0.1%
  • Dimming Interface: DMX512/RDM
  • Working Temperature: ta: -20~50°C tc: 80°C
  • Dimensions: L127 x W40 x H23 (mm)
  • Weight (N.W): 105g
€ 0.00 € 0.00

  • IP Rating
  • Input Voltage Domain
  • Output Current
  • Channels
  • Control
  • Output Power Range
  • Input Voltage
  • Output Voltage
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty

Internal Reference: 2278811
HS Code: 85044031

General
Input Voltage Domain AC
Output Current 100-700mA
Channels 1
Control DMX
Output Power Range 20 W
Input Voltage 100-240 V
Output Voltage 9-42 V
Dimming Range 0-100% down to 0.01%
Operating
IP Rating IP20
Certificates CCC , TUV , CB , CE , KC , EAC , RCM , ENEC , UKCA , BIS , CUL , UL , RoHS
Warranty 5 Years(Rubycon capacitor)
  • SE-20-100-700-W1M User Manual.pdf
