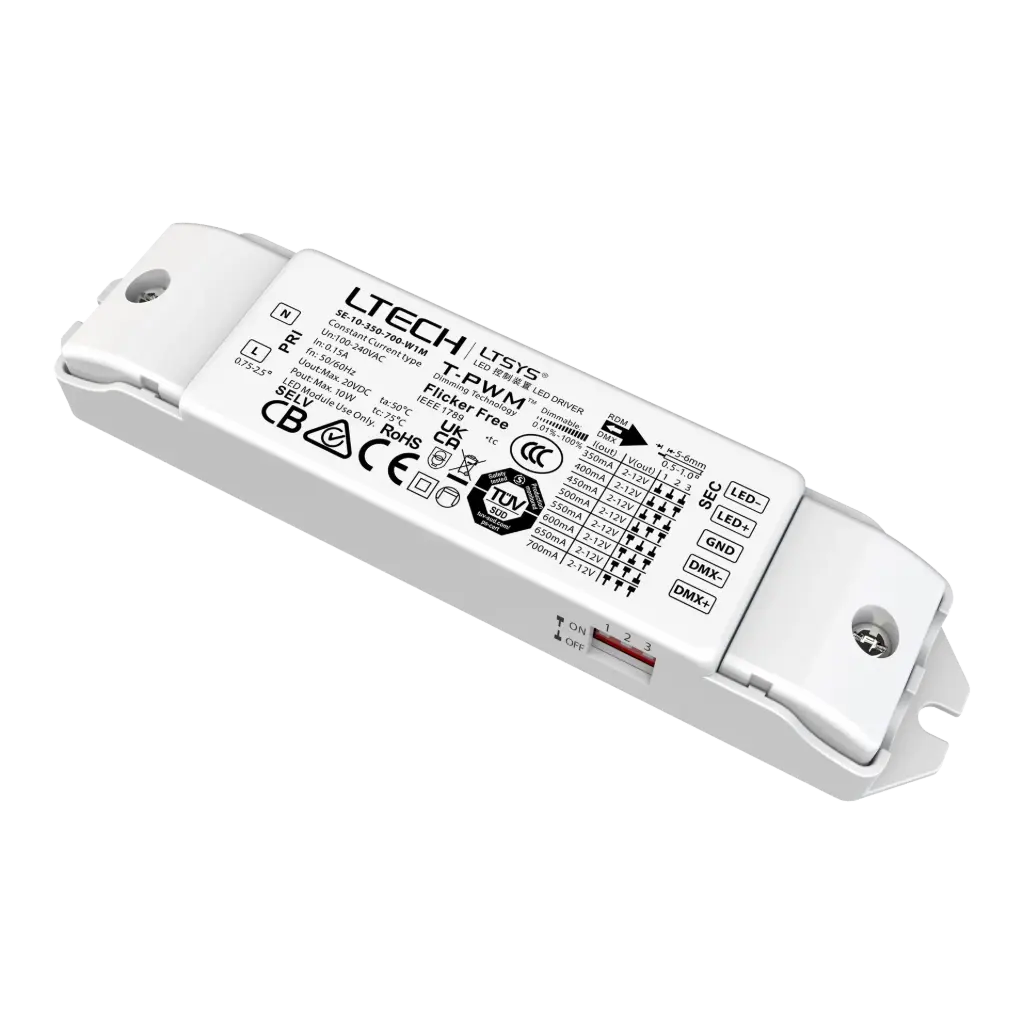

LED Intelligent Driver (Constant Current)
Compact constant current driver with T-PWM dimming for smooth, flicker-free light. Supports RDM protocol, DIP switch current selection and dimming down to 0.01%. Features thermal management with full protection, 50,000-hour lifetime, and 5-year warranty (Rubycon capacitor).
- Input Voltage: 100-240Vac Max. 265Vac
- Input Current: 0.15A@115Vac, 0.1A@230Vac
- Output Voltage: 2-12Vdc Max. 20Vdc
- Output Current Range: 350-700mA
- Output Power: 0.7W~8.4W
- Dimming Interface: DMX512/RDM
- Working Temperature: ta: -30~50°C tc: 75°C
- Dimensions: L135 × W30 × H20 (mm)
- Weight (G.W.): 80g±10g
