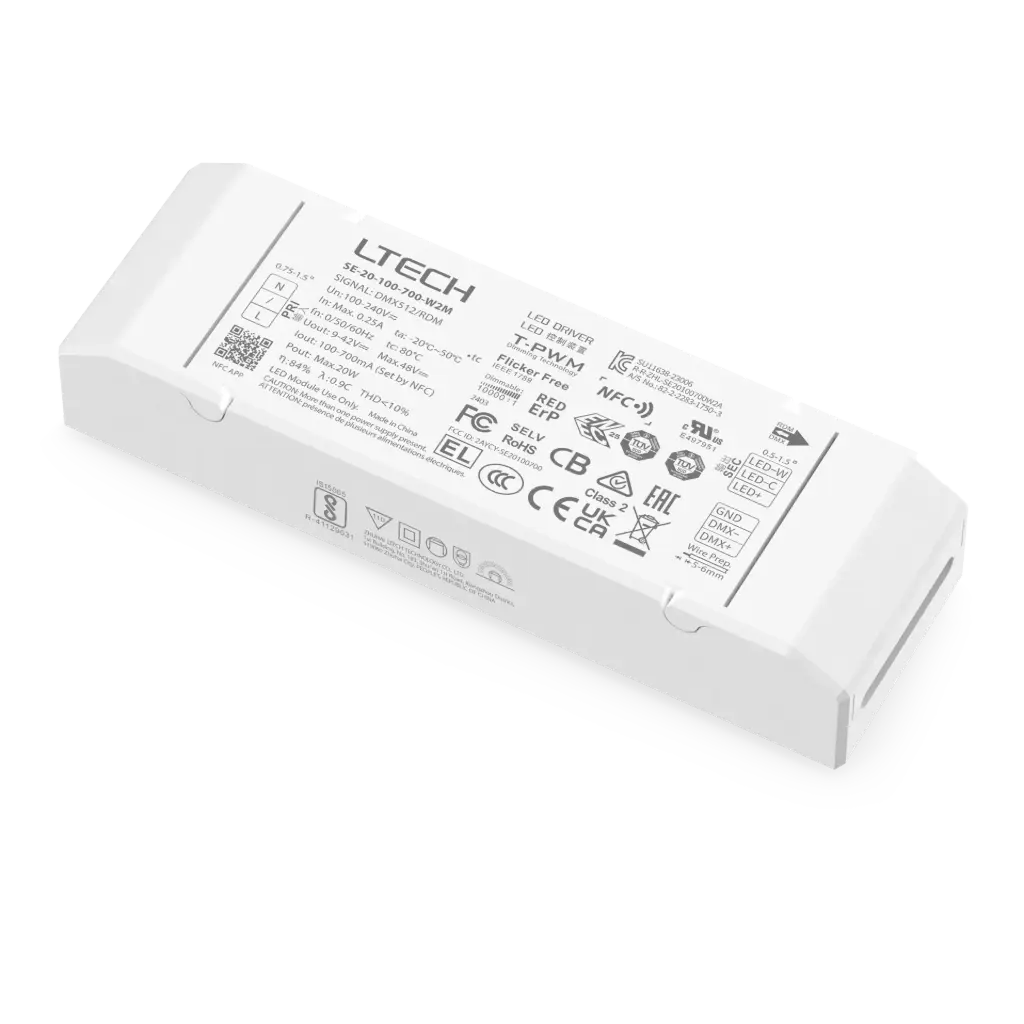

LTECH LTSYS Driver CC DMX 2CH 100-700mA 20W NFC - SE-20-100-700-W2M


Intelligent Tunable White LED Driver (Constant Current)
Compact, lightweight LED driver with V0 flame-retardant housing, adjustable output, T-PWM™ deep dimming, flicker-free, full protection, ErP‑compliant standby, 100,000 hours life, 5-year warranty

  • Input Voltage: 100-240Vdc 100-240Vac
  • Output Voltage: 9-42Vdc Max. 48Vdc
  • Output Current: 100-700mA
  • Output Range: 0.9W-20W
  • Dimming Range: 0~100% down to 0.01%
  • Dimming Interface: DMX512/RDM
  • Working Temperature: ta: -20~50°C tc: 80°C
  • Dimensions: L127 x W40 x H23 (mm)
  • Weight (N.W): 105g
€ 0.00 € 0.00

  • IP Rating
  • Input Voltage Domain
  • Output Current
  • Channels
  • Control
  • Output Power Range
  • Input Voltage
  • Output Voltage
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty

Internal Reference: 2278801
HS Code: 85044031

General
Input Voltage Domain AC
Output Current 100-700mA
Channels 2
Control DMX
Output Power Range 20 W
Input Voltage 100-240 V
Output Voltage 9-42 V
Dimming Range 0-100% down to 0.01%
Operating
IP Rating IP20
Certificates CCC , TUV , CB , CE , KC , EAC , RCM , ENEC , UKCA , BIS , CUL , UL , RoHS
Warranty 5 Years(Rubycon capacitor)
  • SE-20-100-700-W2M User Manual.pdf
