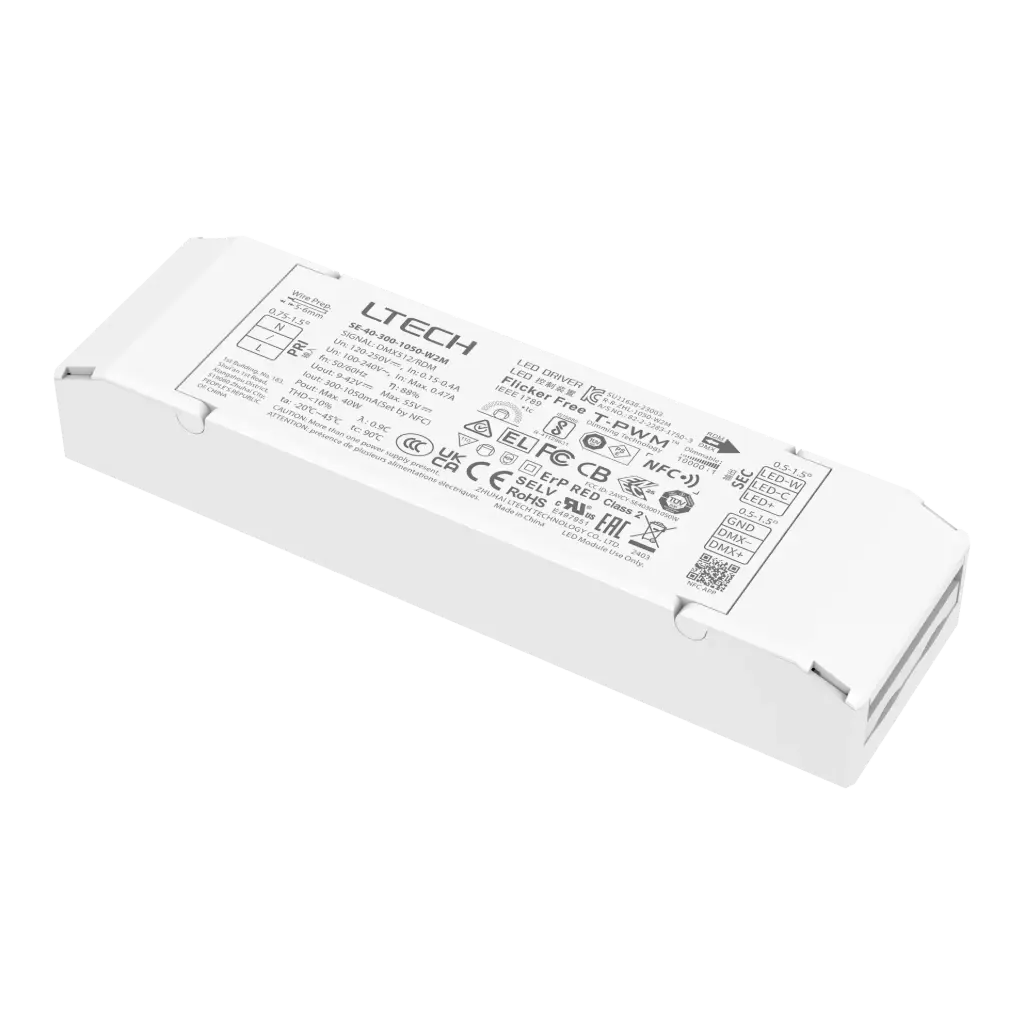

Intelligent Tunable White LED Driver (Constant Current)
A compact V0 flame-retardant housing and screwless end cap. Features adjustable output current in 1 mA steps, supports RDM protocol, soft-on/fade-in dimming, and T-PWM™ super-deep flicker-free dimming down to 0.01%. Parameters like output current and DMX address can be adjusted via the app. Includes overheat, overvoltage, overload, and short-circuit protection, 0 V no-load output, EU ErP compliance (<0.5 W standby), suitable for Class Ⅰ/Ⅱ/Ⅲ fixtures, 100,000 hours lifespan, and 5-year warranty (Rubycon capacitor).
- Input Voltage: 120-250Vdc / 100-240Vac
- Output Voltage: 9-42Vdc Max. 55Vdc
- Output Current: 300-1050mA
- Output Power: 2.7W-40W
- Dimming Range: 0~100%, down to 0.01%
- Dimming Interface: DMX512/RDM
- Working Temperature: ta: -20~45°C tc: 90°C
- Dimensions: L142 x W40 x H23 (mm)
- Weight (N.W): 170g
