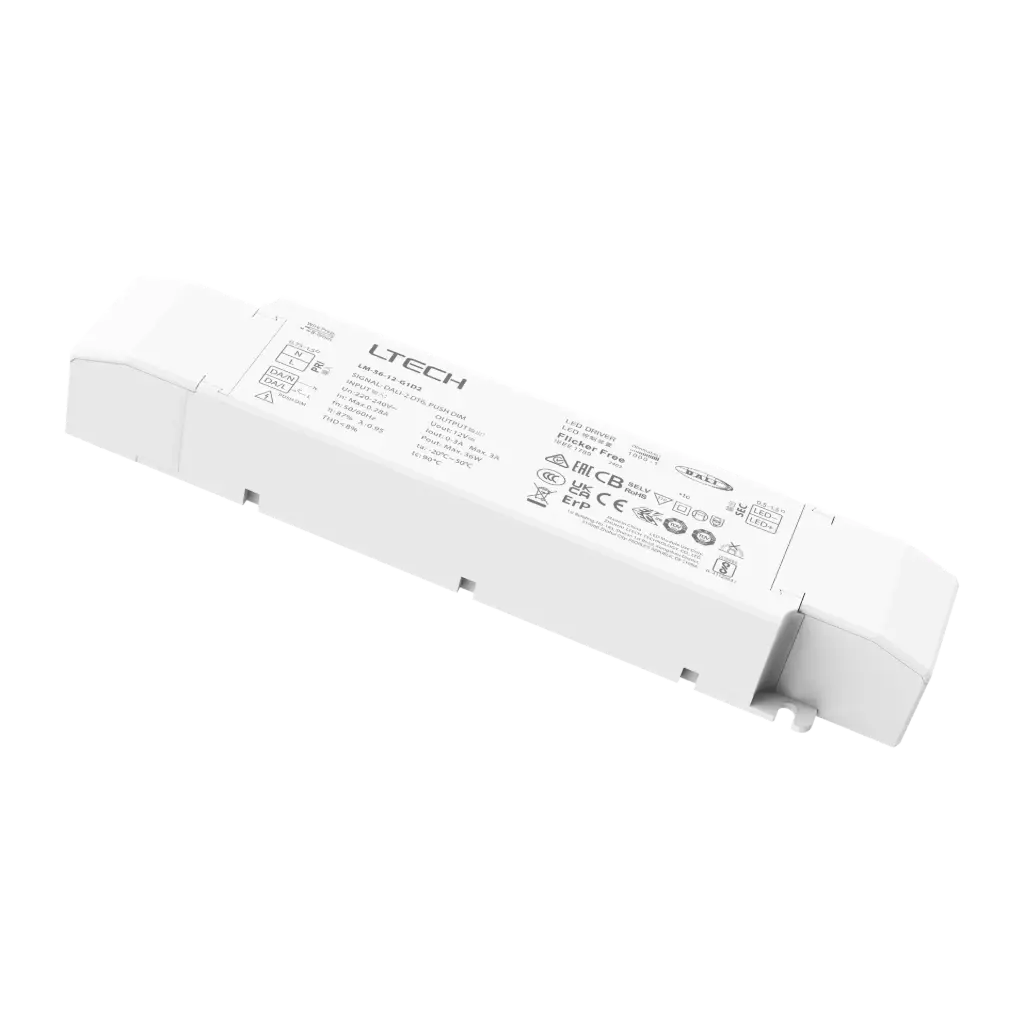

LTECH LTSYS Driver CV DALI-2 1CH 12V 36W - LM-36-12-G1D2

LTECH LTSYS Driver CV DALI-2 1CH 12V 36W - LM-36-12-G1D2


LED Intelligent Driver (Constant Voltage)
It supports DALI-2 and Push DIM control, making it suitable for LED strips and other resistor current-limited LED fixtures.

Smooth, flicker-free dimming
The driver provides smooth dimming from 0.1% to 100% with flicker-free performance for comfortable lighting transitions. Push DIM allows simple on/off and stepless dimming control, while DALI-2 provides digital lighting control.

Efficient and protected
With 87% efficiency and standby power below 0.5 W, the driver is designed for efficient operation. Built-in thermal management and protection against overheat, overvoltage, overload, and short circuit provide reliable performance with automatic recovery. Its flame-retardant housing features a removable end cap for adjustable housing length, and the driver is suitable for indoor Class I/II/III lamp applications with up to 50,000 hours of lifetime.

€ 0.00 € 0.00 /Unit

  • Input Voltage Domain
  • Input Voltage
  • Output Voltage
  • Channels
  • Output Power
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Control
  • Control
  • Dimming Range
  • Warranty
  • Maximum Current
  • Maximum Output Current
Add to cart
Contact Us

Internal Reference: 2850900
Barcode: 6971379111823
Internal Reference: 2850900
HS Code: 85044095

01
General
9 specifications
Control
DALI · Push dim
Channels
1
Input Voltage
AC (220-240 V)
Input Voltage Domain
AC
Maximum Current
3 A
Output Voltage
12 V
Output Power
36 W
Maximum Output Current
3 A
Dimming Range
0-100% down to 0.1%
02
Operating
2 specifications
Certificates
CCC · BIS · TUV · CE · KC · RCM · ENEC · CB · EAC · UKCA
Warranty
5 Years
01
User Manuals
1 file
PDF
LM-36-12-G1D2 User Manual.pdf
957 KB
Download
