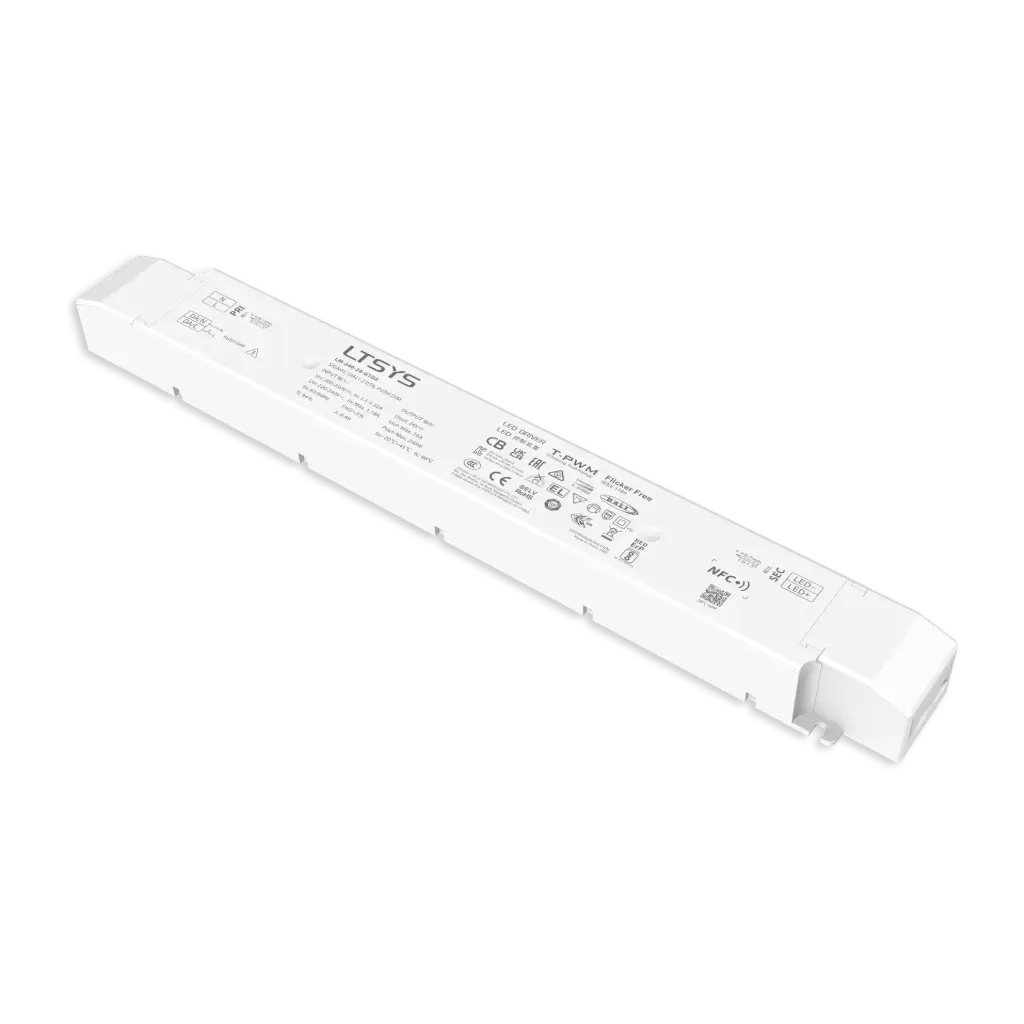

LTECH LTSYS Driver CV DALI-2 1CH 24V 200W - LM-240-24-G1D2


Intelligent LED Driver (Constant Voltage)
The housing is made from V0 flame-retardant PC materials from SAMSUNG/COVESTRO. Its clamshell, screwless design with a removable end cap allows adjustable length for easy installation. Change DALI addresses, PWM frequency, and other parameters via the app, and set DALI groups and scenes using the advanced template. Soft-on and fade-in dimming ensures flicker-free operation with high-frequency exemption. T-PWM™ technology enables ultra-deep dimming down to 0.01%. Complies with the EU ErP directive (standby <0.5 W) and includes overheat, overvoltage, overload, and short-circuit protection with automatic recovery. Lifetime up to 100,000 hours.

  • Input Voltage: 220-240Vac 200-250Vac
  • Dimming Interface: DALI-2 DT6, PUSH DIM
  • Output Voltage: 24Vac
  • Output Current: Max. 10A
  • Output Power: Max. 240W
  • Working Temperature: ta: -20~45°C tc: 86°C
  • Dimensions: L380 × W49.5 × H30 (mm)
  • Weight (G.W): 555g
€ 0.00 € 0.00

  • IP Rating
  • Input Voltage Domain
  • Channels
  • Control
  • Output Power Range
  • Input Voltage
  • Output Voltage
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty

Internal Reference: 2824500
HS Code: 85044031

General
Input Voltage Domain AC
Channels 1
Control DALI
Output Power Range 200 W
Input Voltage 220-240 V
Output Voltage 24 V
Curent load max 10A
Dimming Range 0-100% down to 0.01%
Operating
IP Rating IP20
Certificates CCC , BIS , TUV , CB , CE , KC , EAC , RCM , ENEC , UKCA , ERP , RoHS
Warranty 5 Years
  • LM-240-24-G1D2 User Manual.pdf
