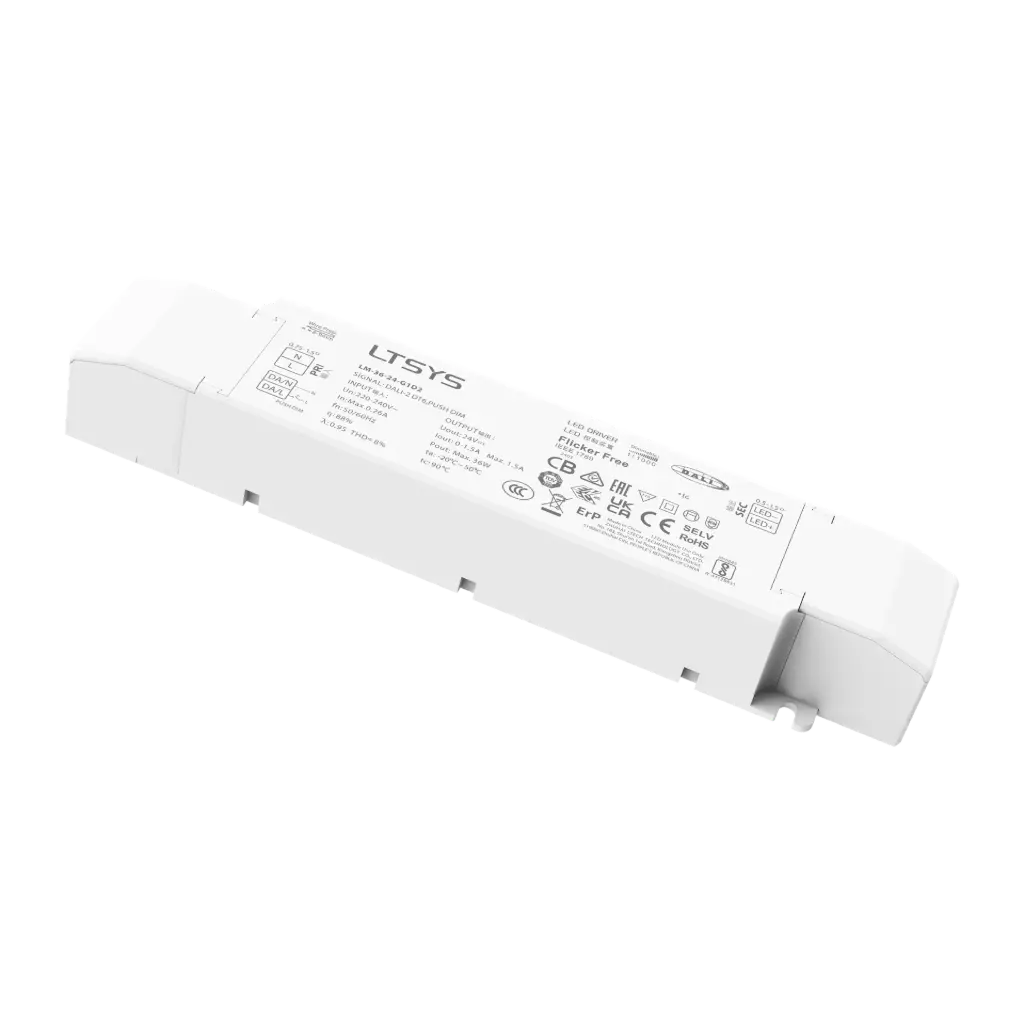

LTECH LTSYS Driver CV DALI-2 1CH 24V 36W - LM-36-24-G1D2


LED Intelligent Driver (Constant Voltage)
Small, lightweight V0 flame-resistant polycarbonate protective housings from SAMSUNG/COVESTRO. Removable end cap allows adjustable length. DALI-2 and Push DIM interfaces, 0-100% dimming down to 0.1%, flicker-free with high-frequency exemption. High-performance drivers' efficiency 88%, PF>0.95, THD<8%, standby <0.5 W. Thermal management with overheat, overvoltage, overload, and short-circuit protection, recover automatically. Complies with DALI bus standard IEC62386-101, 102, 207. Suitable for indoor I/II/III lamp application. 50,000-hour lifetime. 5-year warranty (Rubycon capacitor).

  • Input Voltage: 220-240Vac 200-280Vdc
  • Dimming Interface: DALI-2, Push DIM
  • Output Voltage: 24Vdc
  • Output Current: Max. 1.5A
  • Output Power: Max. 36W
  • Working Temperature: ta: -20~50°C tc: 90°C
  • Dimensions: L210 × W43 × H30 (mm)
  • Weight (G.W): 210g
€ 0.00 € 0.00

  • Input Voltage Domain
  • Input Voltage
  • Output Voltage
  • Channels
  • Curent load max
  • Output Power Range
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Control
  • Control
  • Dimming Range
  • Warranty

Internal Reference: 2851000
HS Code: 85044031

General
Input Voltage Domain AC
Input Voltage 220-240 V
Output Voltage 24 V
Channels 1
Curent load max 1.5A
Output Power Range 36 W
Control DALI , Push dim
Dimming Range 0-100% down to 0.1%
Operating
Certificates CCC , TUV , CE , KC , RCM , ENEC , CB , EAC , BIS , RoHS
Warranty 5 Years
  • LM-36-24-G1D2 User Manual.pdf
