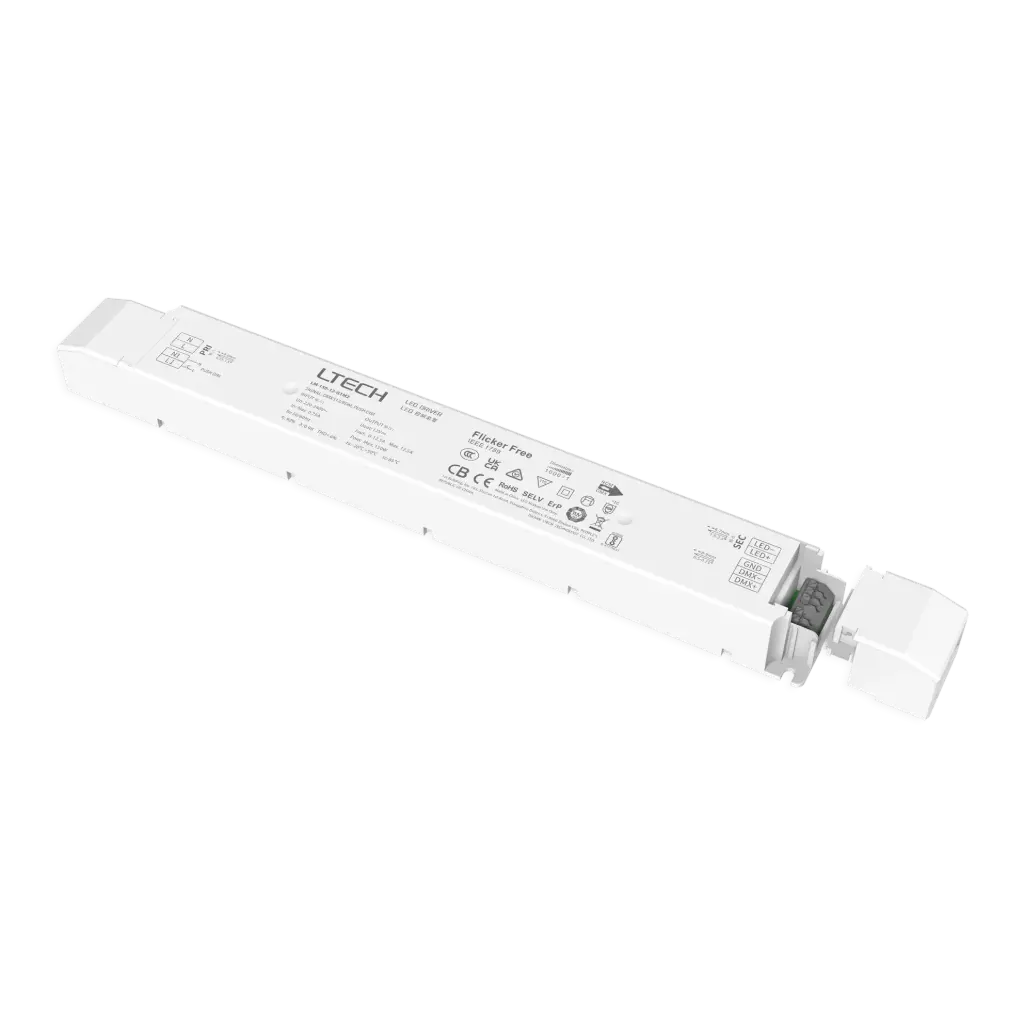

LTECH LTSYS Driver CV DMX 1CH 12V 150W - LM-150-12-G1M2

LED Intelligent Driver (Constant Voltage)

Compact and lightweight with V0 flame-retardant housing from Samsung/Covestro. Clamshell design with screwless strain-relief and adjustable end cap. Soft-on and fade-in dimming from 0-100% (from 0.1%). High efficiency (93%), PF>0.98, THD<6%, compliant with EU ErP (<0.5W standby). Innovative thermal management with protection against overheat, overvoltage, overload, and short circuit. Fully protected housing, DALI standard IEC62386-101/102/207. Suitable for indoor Class I/II/III fixtures. 50,000-hour life.

Control
- DMX
Input Voltage
- 220-240 V
Input Voltage Domain
- AC
Channels
- 1
Output Voltage
- 12 V
Output Power Range
- 150
Curent load max
- 12.5A

Internal Reference: 2812700
HS Code: 85044031

General

7 specifications

Control

Input Voltage

220-240 V

Input Voltage Domain

Channels

Output Voltage

Output Power Range

Curent load max

12.5A
