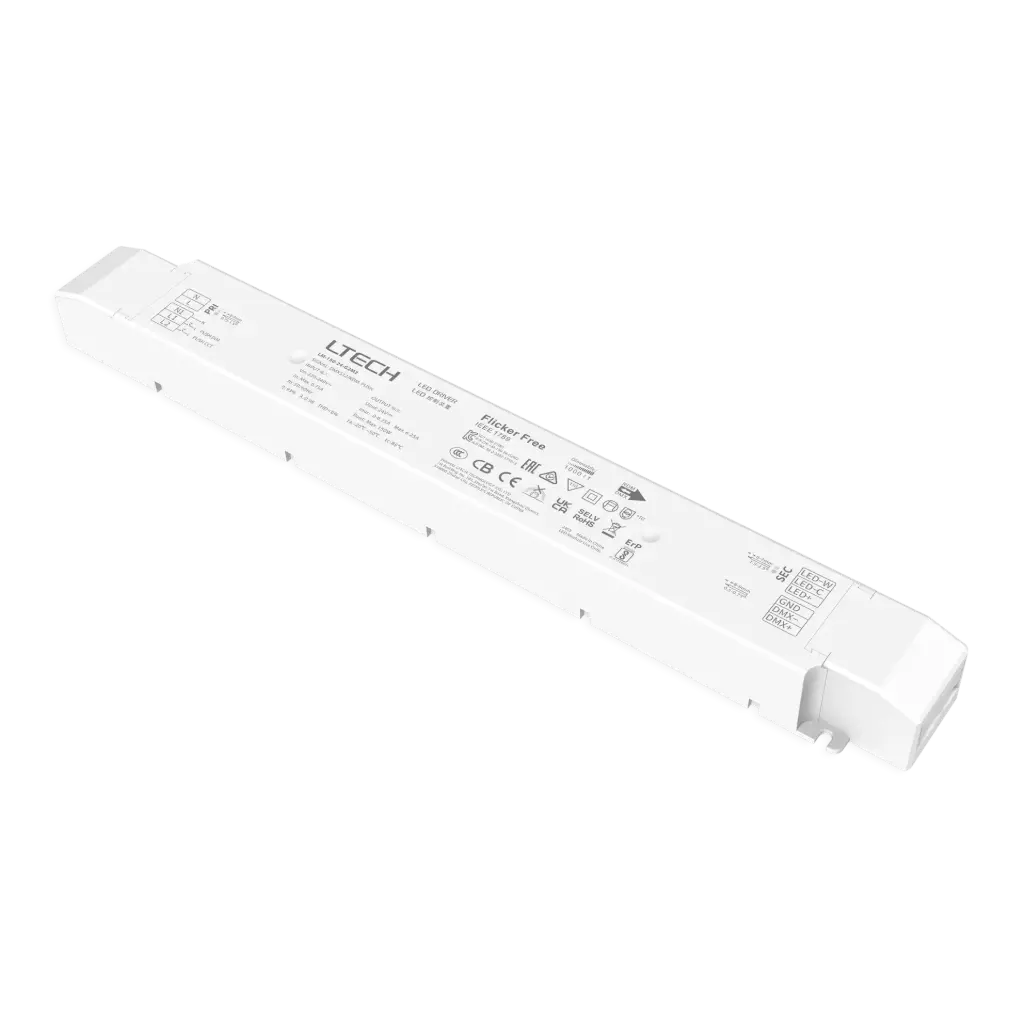

LTECH LTSYS Driver CV DMX 2CH 24V 150W - LM-150-24-G2M2


LED Intelligent CT Driver (Constant Voltage)

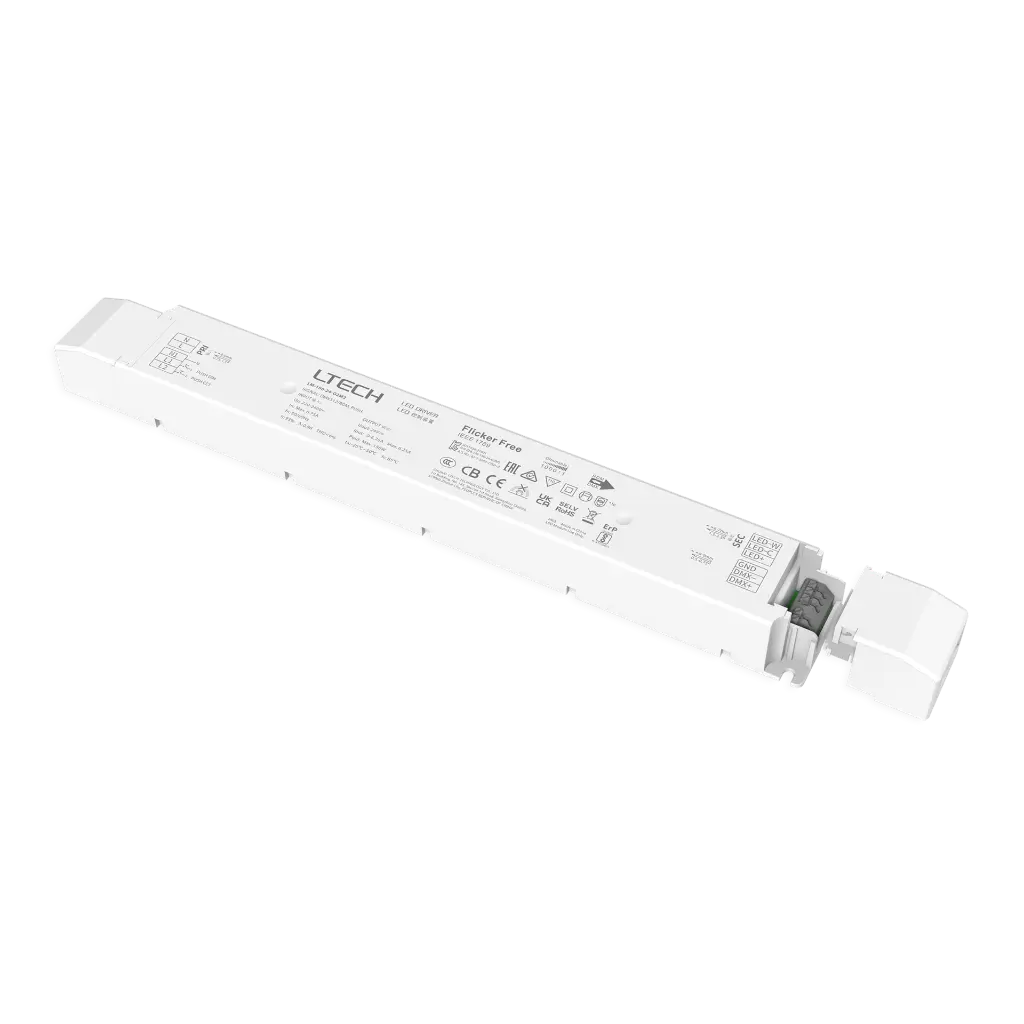

Compact and lightweight with V0 flame-retardant PC housing from Samsung/Covestro. Features two independent SELV constant voltage channels with constant power design to maintain brightness during color temperature adjustment (2700-6500K). Supports RDM protocol, soft-on and fade-in dimming. High efficiency at 93% (PF>0.98, THD<6%) with standby power <0.5W. Includes overheat, overvoltage, overload, and short-circuit protection with automatic recovery. Fully protected housing with dismountable end cover, suitable for indoor Class I/II/III lighting. Up to 50,000-hour lifetime.

€ 0.00 € 0.00

  • Control
  • Input Voltage
  • Input Voltage Domain
  • Channels
  • Output Voltage
  • Output Power Range
  • Current load/ ch
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Add to cart
Contact Us

Internal Reference: 2813200
HS Code: 85044031

01
General
9 specifications
Control
DMX
Input Voltage
220-240 V
Input Voltage Domain
AC
Channels
2
Output Voltage
24 V
Output Power Range
150
Current load/ ch
3.125A
Curent load max
6.25A
Dimming Range
0-100% down to 0.01%
02
Operating
2 specifications
Certificates
CCC · CB · CE · KC · EAC · RCM · ENEC · UKCA · BIS · ERP · RoHS
Warranty
5 Years
01
All Files
1 file
PDF
LM-150-24-G2M2 User Manual.pdf
1.4 MB
Download
