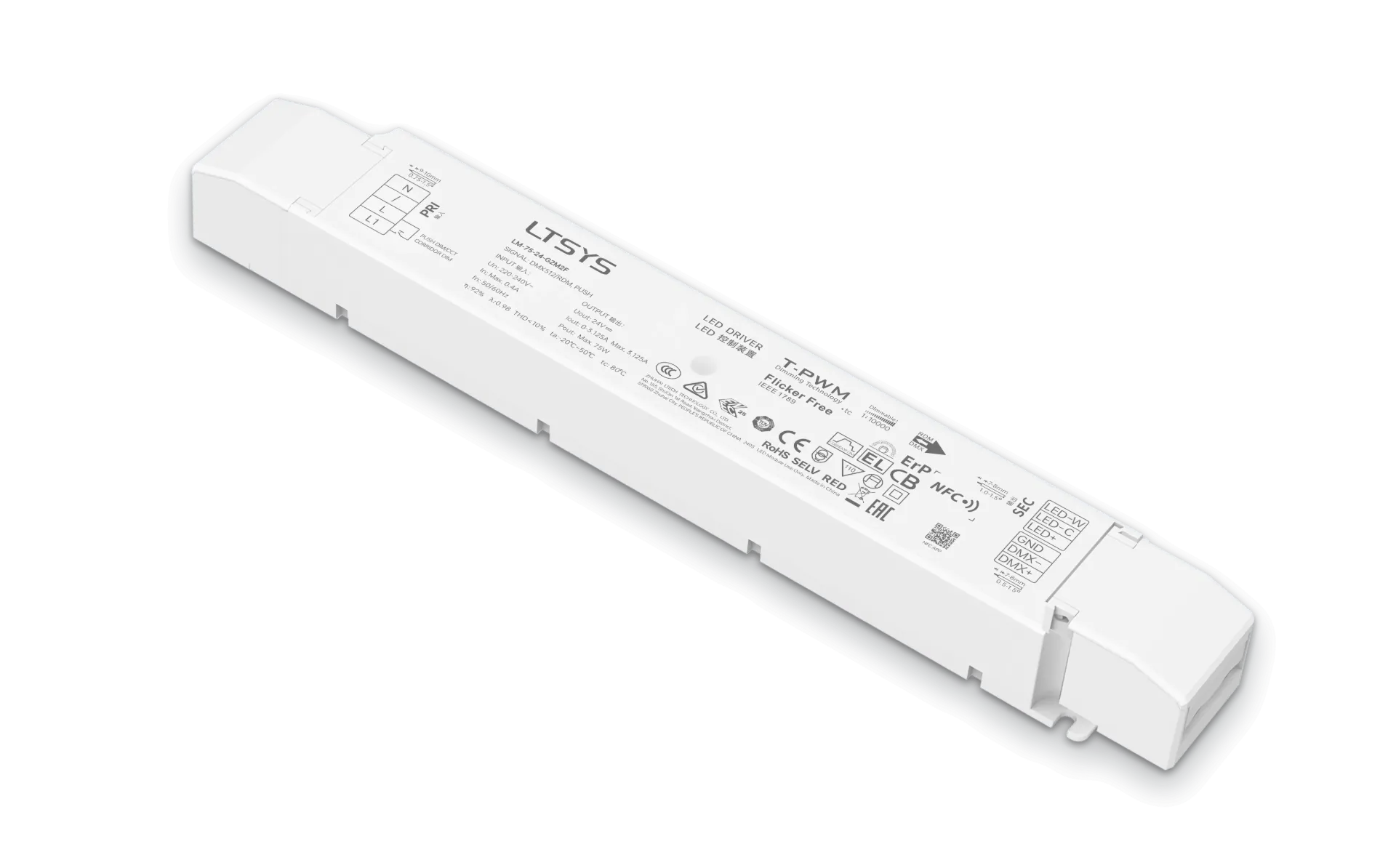

LTECH LTSYS Driver CV DMX 2CH 24V 75W NFC - LM-75-24-G2M2F

LED Intelligent CT Driver (Constant Voltage)

The LED Intelligent CT Driver (constant voltage) features DMX512/RDM and Push DIM/CCT interfaces with 2-channel SELV output and constant power design to maintain brightness across color temperatures from 2700K to 6500K. It supports RDM remote management, smooth 0-100% dimming down to 0.1%, and soft-on fade-in for visual comfort. With protections against overheat, overload, overvoltage, and short circuit plus automatic recovery, it ensures reliable performance. Designed with a fully protected housing and low standby power (<0.5W), it is ideal for indoor ClassⅠ/Ⅱ/Ⅲ lamp applications. 5-year warranty (Rubycon capacitor).

Input Voltage: 220-240Vac
Output Voltage: 24Vdc
Output Current: Max. 3.125A
Output Power: Max. 75W
Output Power Range: 0~75W
Working Temperature: ta: -20~50°C tc:80°C
Dimensions: L293 x W43 x H30 (mm)
Weight (G.W): 300g

Control
- DMX
Input Voltage
- 220-240 V
Input Voltage Domain
- AC
Channels
- 2
Output Voltage
- 24 V
Output Power Range
- 75 W
Current load/ ch
- 1.56A
Curent load max
- 3.125A

Internal Reference: 2812502
HS Code: 85044031

General

8 specifications

Control

Input Voltage

220-240 V

Input Voltage Domain

Channels

Output Voltage

Output Power Range

Current load/ ch

1.56A

Curent load max

3.125A

All Files

1 file

LM-75-24-G2M2F_EN.pdf

2.4 MB
