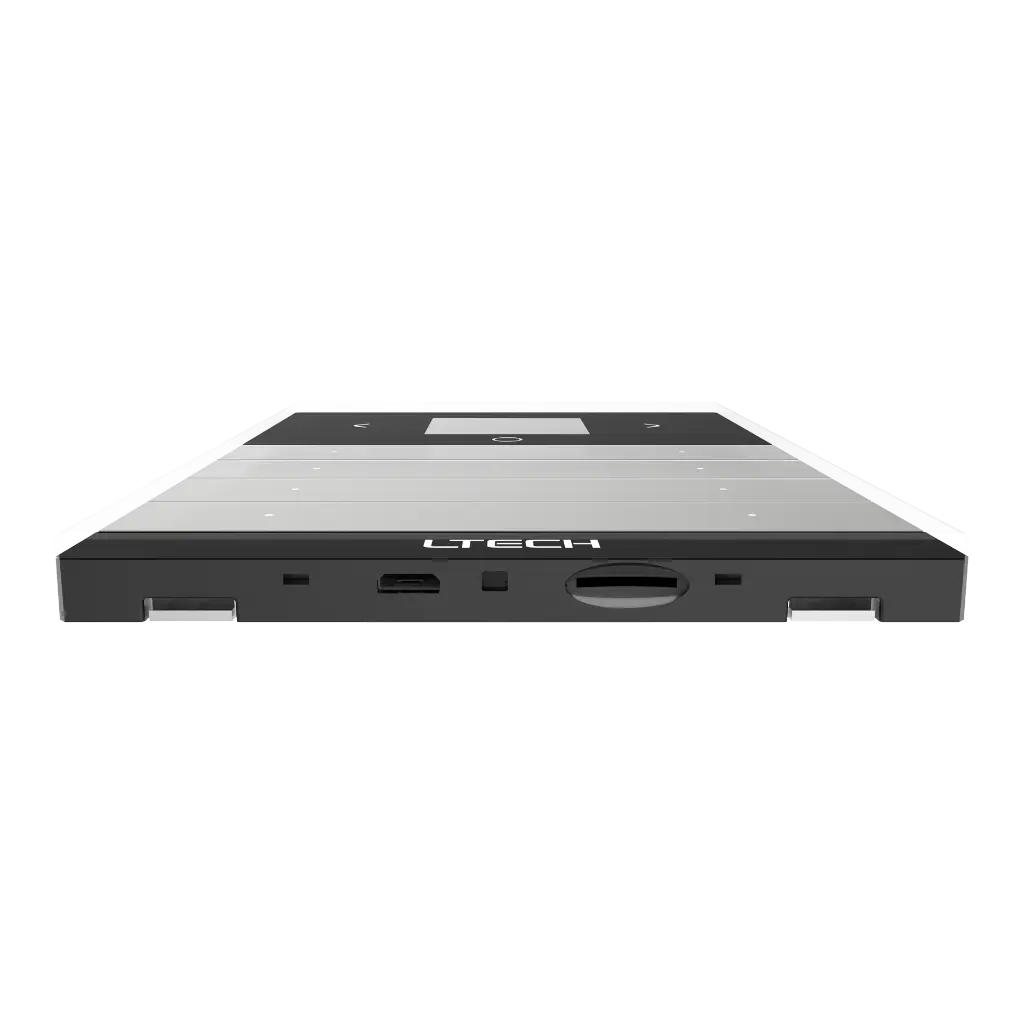

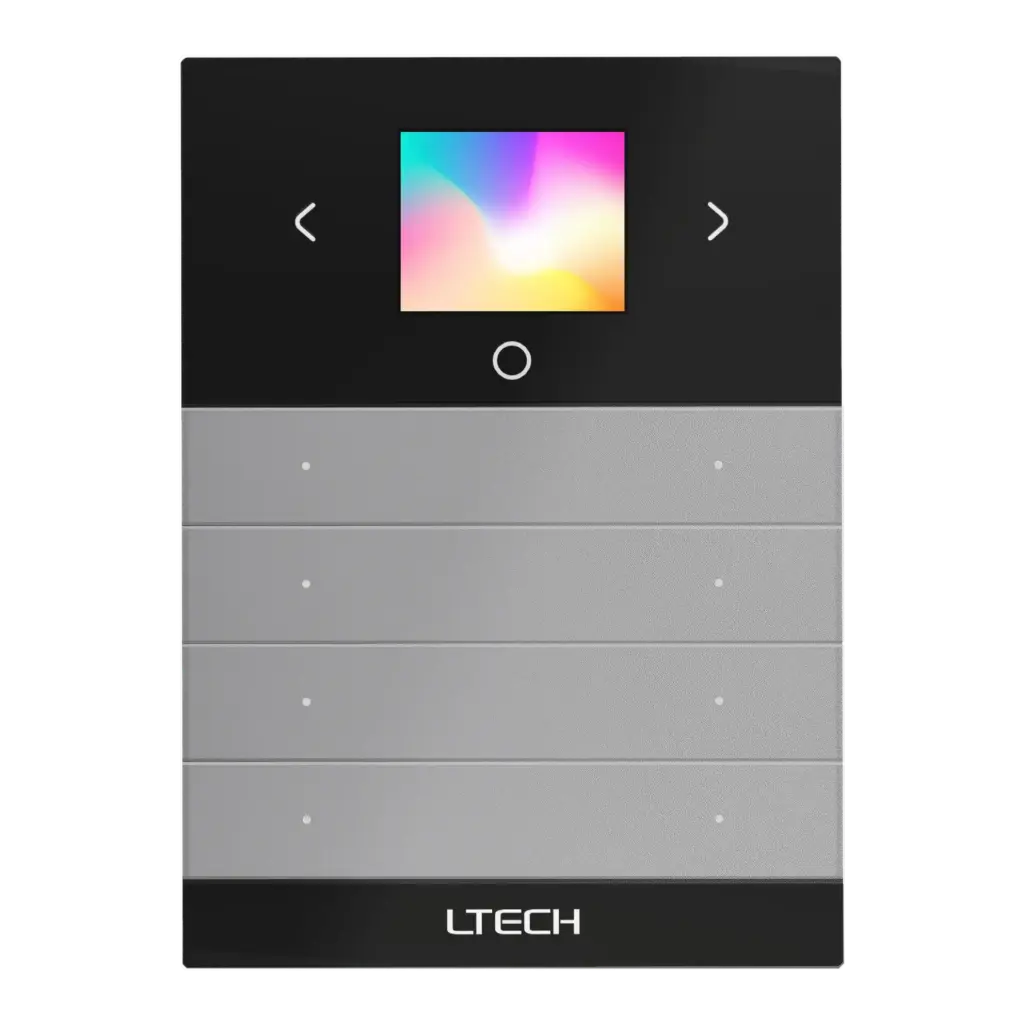

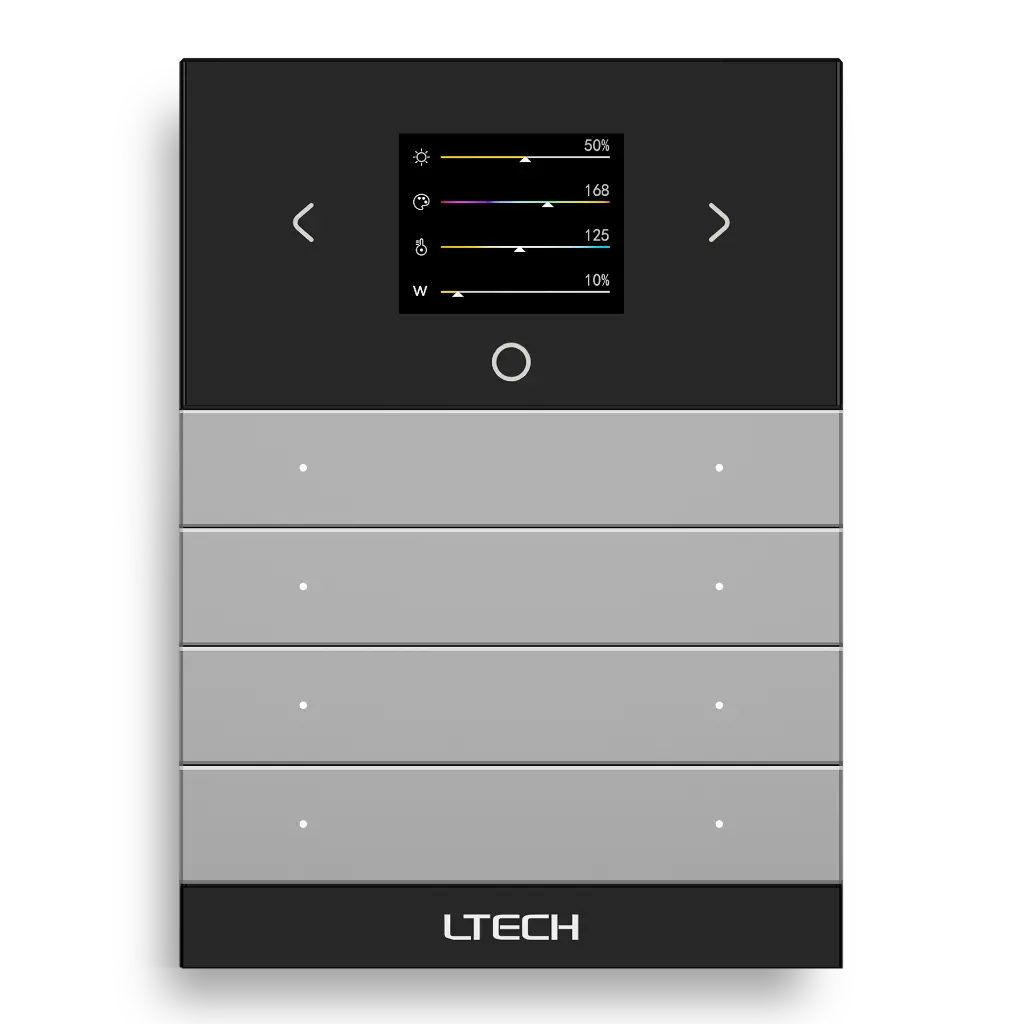

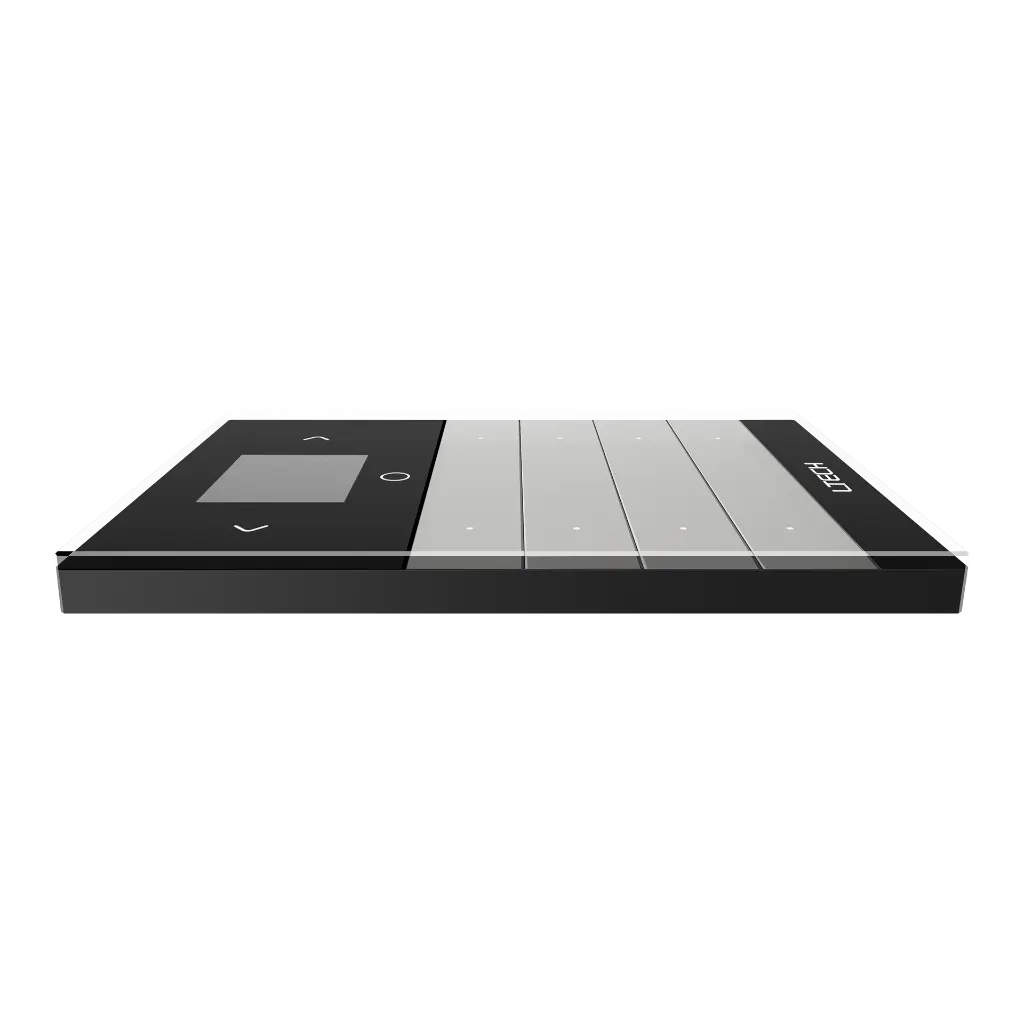

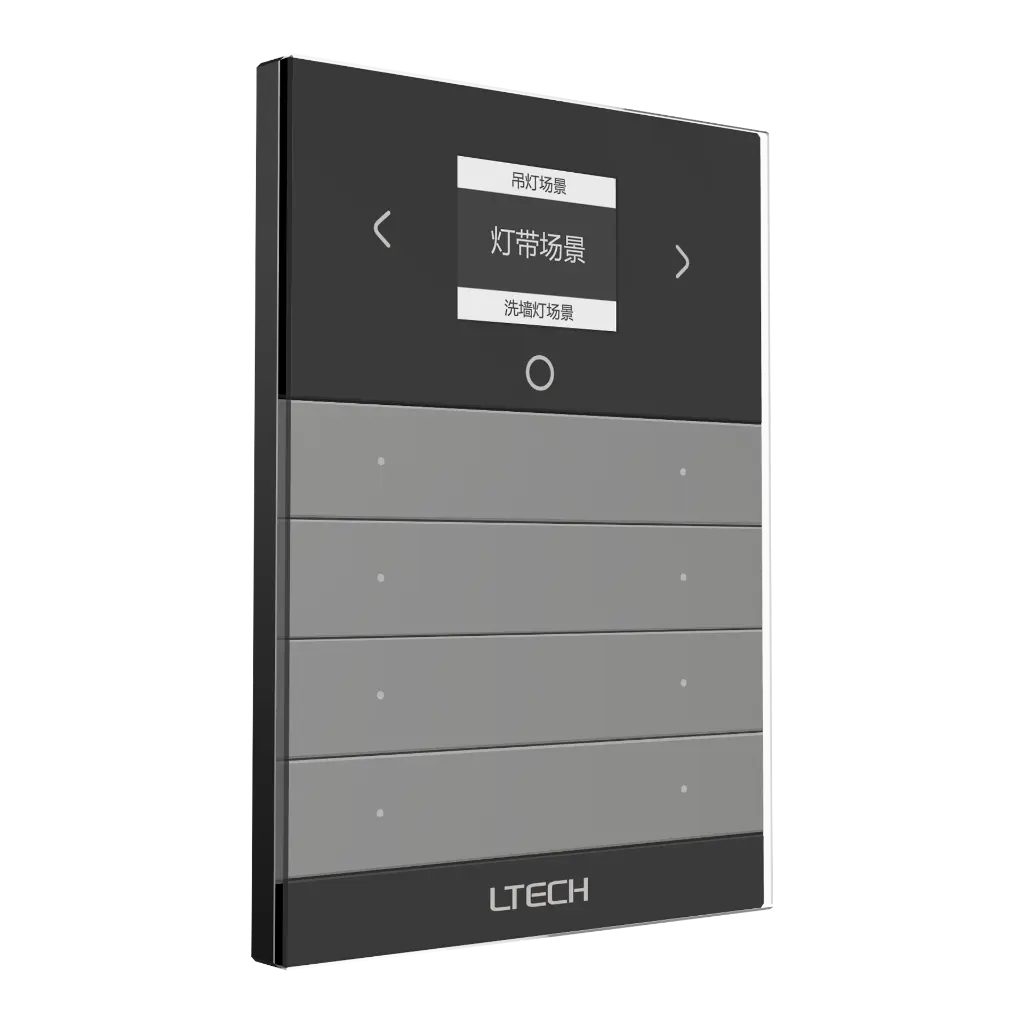

This ultra-thin wall-mounted lighting control system features an LCD color screen with touch interaction for easy operation. It supports iOS and Android apps, WiFi plus DMX/RDM protocol for remote and LAN control, and built-in touch vibration technology. With 8 DIY scene keys, it can manage up to 512 lamps, 512 scenes, and scene switching states, controlling dimming, color temperature, RGB, RGBW, and RGBCWY lamps. It also works with DMX-TRIG to trigger 15 scenes via dry contact and includes slow start/stop and lamp power control.
• Input Voltage: 5-24V DC
• Wireless Type: WiFi, RF 2.4GHz
• Output Signal: DMX512, L-BUS
• Working Temperature: -20°C~55°C
• Dimensions: L146 x W106 x H18 (mm)
• Weight: 620g
