Supports the international DMX512/1990 protocol. In DMX administration mode, users can select mode, speed, brightness, color type, and direction via a DMX512 console. In DMX decoder mode, each LED channel can be programmed with compatible ICs, offering 0–100% dimming and customizable lighting effects.

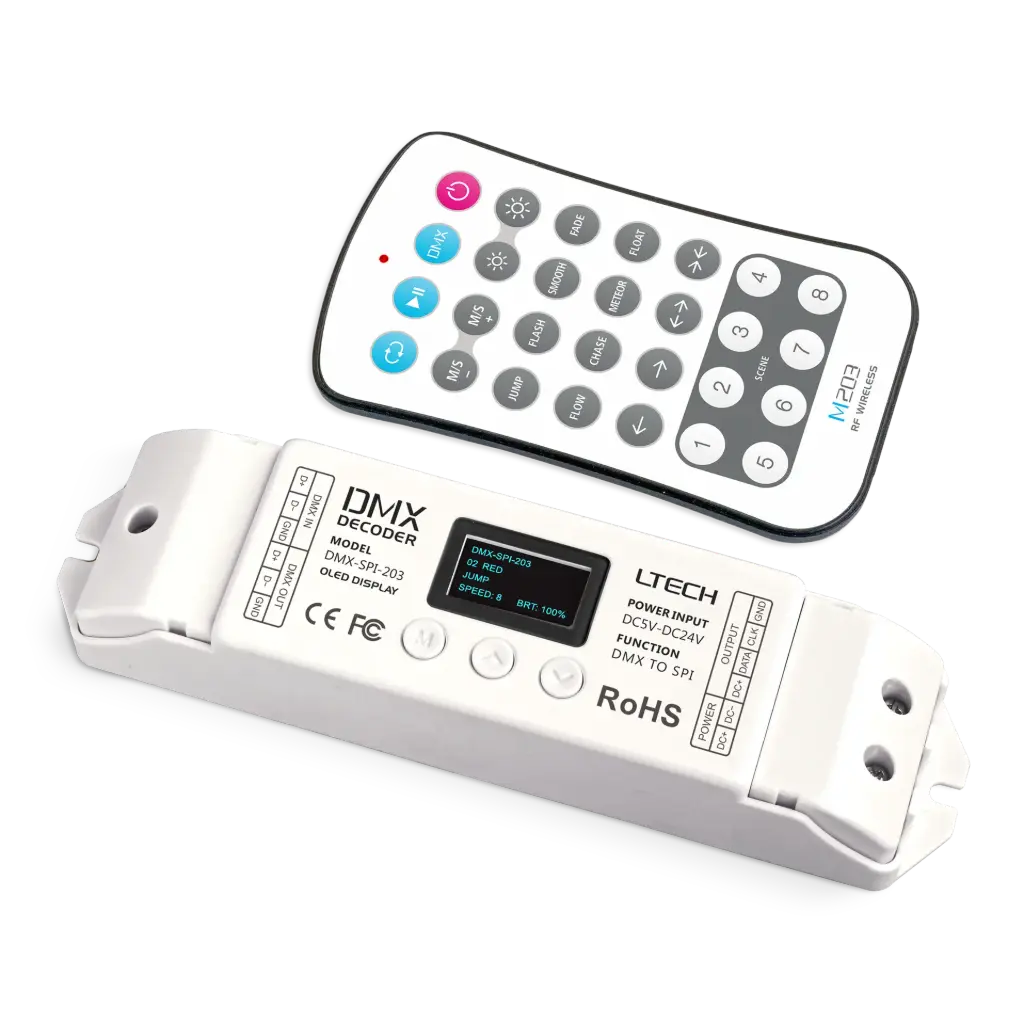

Controller Model: DMX-SPI-203
• Input Voltage: 5~24V DC
• Power Consumption: 1W (if the lamps are powered individual)
• Output Signal: SPI (TTL)
• Change Mode: 540
• DMX Channel: DMX Manage Manage Mode: 6CH, DMX Decode Mode: 510CH
• Control Qty: 1024 Pixels
• Virtual Pixels: 1-6 times, Max. 1024 pixel
• Working Temperature: -30°C~55°C
• Dimensions: L175 x W44 x H30 (mm)
• Weight (G.W): 130g
Remote Model: M203
• Working Voltage: 3V (battery CR2032)
• Working Frequency: 2.4GHz
• Working Temperature: -20°C~55°C
• Dimensions: L104 x W58 x H9 (mm)
• Weight (N.W): 42g
