Linear Flex Silicone Multi Color

Linear Flex Silicone Multi Color

The Linear Flex Silicone is a flexible linear lighting solution for professional outdoor applications, delivering reliable RGB or RGBW illumination. Its full silicone housing ensures durability in wet and exposed environments, while versatile beam options provide precise optical control for architectural, landscape, and hospitality lighting designs.

↘ Flexible Installation Format — Adapts to linear runs and complex curved geometries

↘ Precision Optic Array — Multiple symmetric angles and asymmetric optics for advanced lighting control
€ 0.00 € 0.00 /m

  • Color Model
  • CRI
  • CRI
  • Power Consumption
  • Power Consumption
  • LED Count
  • LED Type
  • LED Type
  • Lumen Maintenance Hours (h)
  • Environment
  • Storage Temperature (°C)
  • Working Temperature (°C)
  • Saltwater Resistant
  • UV Resistant
  • Flame Resistant
  • IK Rating
  • IP Rating
  • Connector Material
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Warranty
  • Housing Material
  • Cable Material
  • Cover Material
  • Connector Type
  • Connector Type
  • Dimensions (LxWxH) (mm)
  • Color / CCT
  • Optics
  • Control
  • Input Voltage
  • Housing Color - White RAL9003
  • Cable configuration
  • Cable entry - Bottom (Single / Double feed)
Add to cart
Contact Us

Internal Reference: 3167562
Barcode: 3167562
HS Code: 85395210

01
General
9 specifications
Color Model
Multi Color
Color / CCT
RGB
CRI
≥80 · ≥90
Control
PWM
Power Consumption
18 W/m · 24 W/m
Input Voltage
DC (24 V)
LED Count
24/m
LED Type
3in1 · 4in1
Optics
60°
02
Installation Conditions & Lighting Data
1 specification
Lumen Maintenance Hours (h)
70.000 Hours L70 @ 25°C 50.000 Hours L70 @ 50°C
03
Operating
10 specifications
Environment
Outdoor
Storage Temperature (°C)
0 to +50
Working Temperature (°C)
-40 to +55
Saltwater Resistant
Yes
UV Resistant
Yes
Flame Resistant
Yes
IK Rating
IK08
IP Rating
IP68
Certificates
CB · CE · FCC · RoHS · UKCA · UL
Warranty
5 Years
04
Physical
9 specifications
Cable configuration
Single feed with connector - 300mm
Cable entry
Bottom (Single / Double feed)
Connector Material
Nylon (PA66)
Housing Material
Silicone
Cable Material
Silicone
Cover Material
Silicone
Connector Type
Bare Wire · M12 5Pin
Housing Color
White RAL9003
Dimensions (LxWxH) (mm)
18 x 18
01
Specification Sheets & Certifications
2 files
PDF
Linear Flex Silicone Multi Color RGB.pdf
413 KB
Download
PDF
Linear Flex Silicone Multi Color RGBW.pdf
416 KB
Download
02
Other
1 file
ZIP
Linear Flex Multi Color IES-LDT.zip
329 KB
Download
3 files

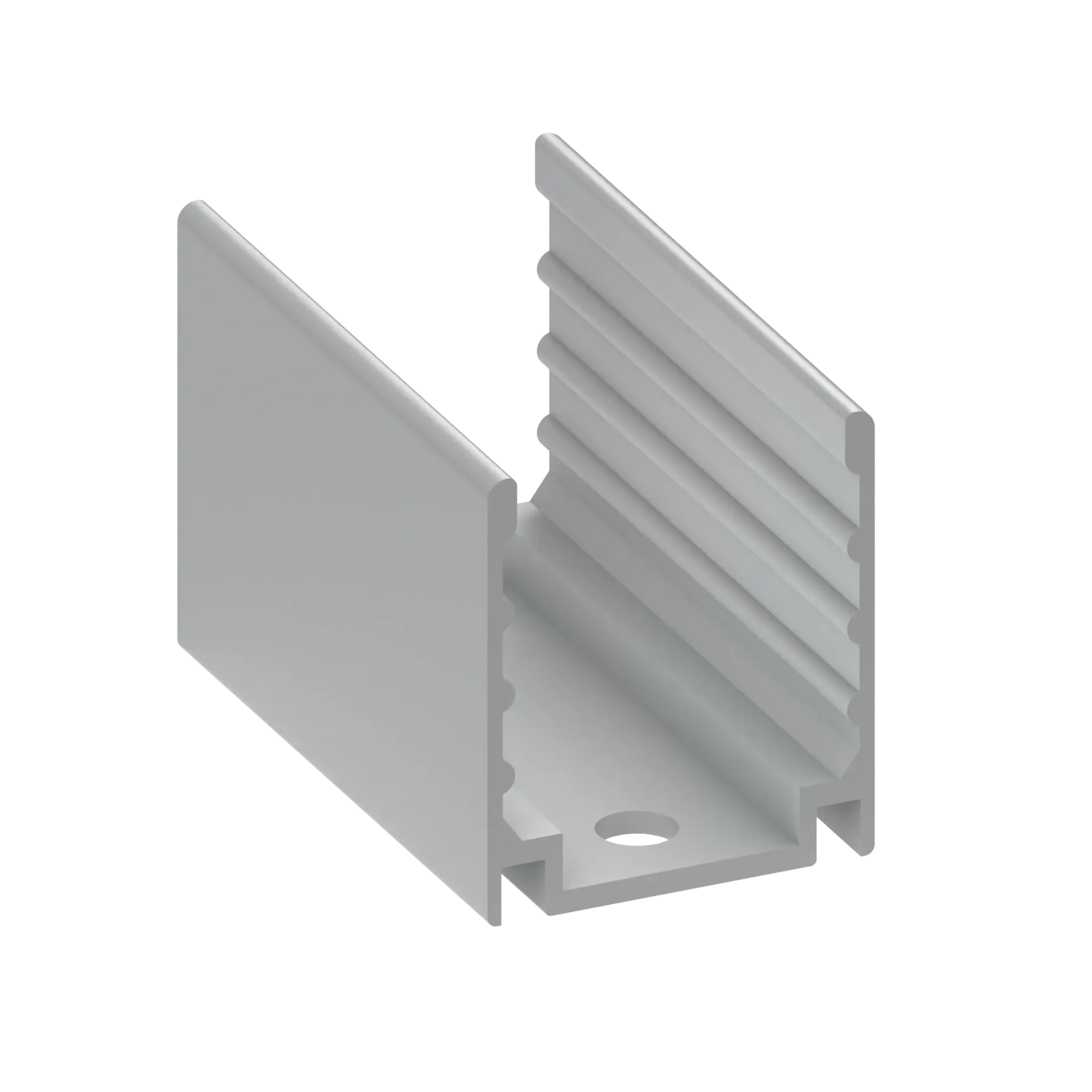

[3173016] Clip Profile Linear Flex Silicone

[3173016] Clip Profile Linear Flex Silicone

€ 1.50

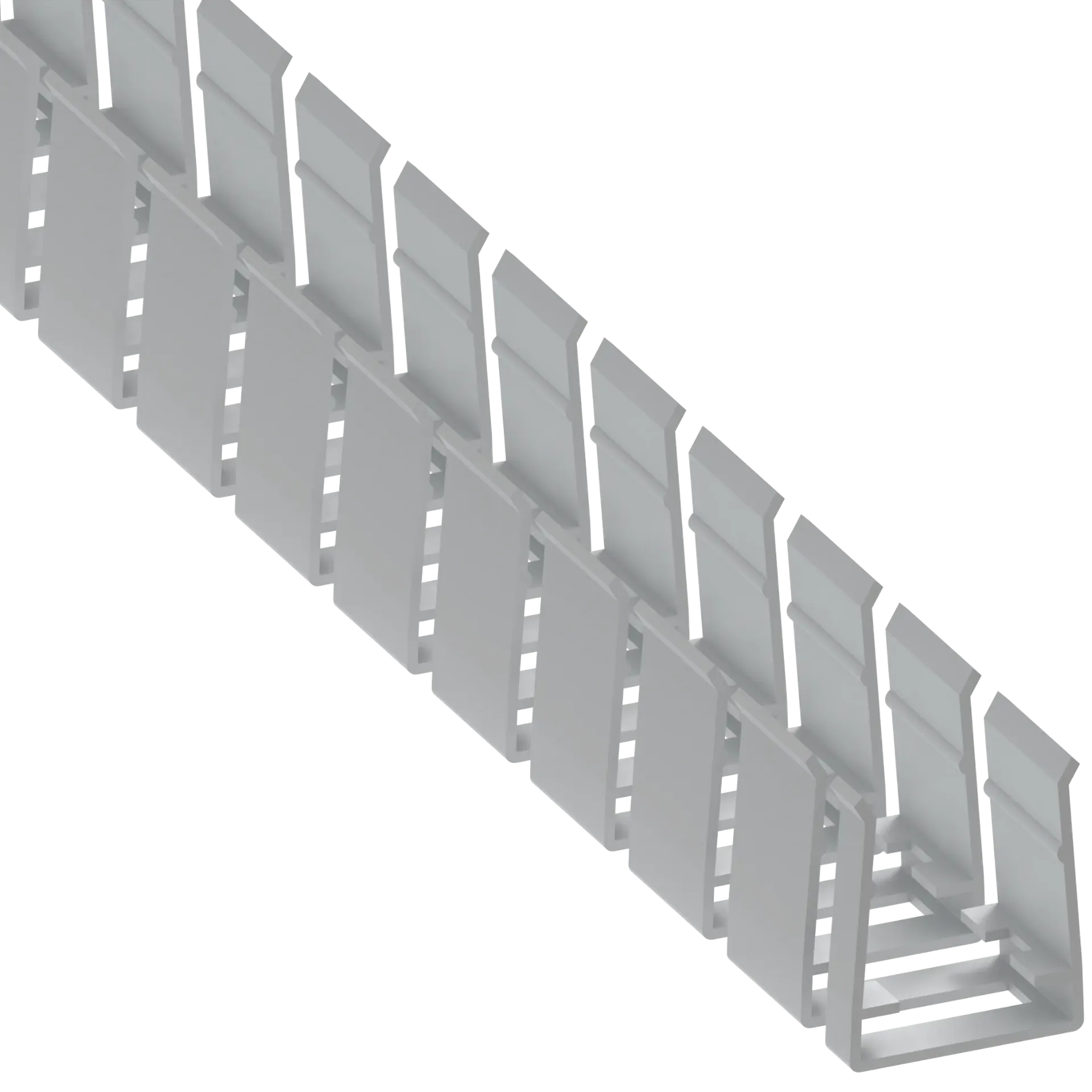

Dual Bend Profile Linear Flex Silicone

Dual Bend Profile Linear Flex Silicone

€ 20.00
M12 5Pin PWM Jumper Cable

M12 5Pin PWM Jumper Cable

€ 16.00
M12 5Pin PWM Leader Cable

M12 5Pin PWM Leader Cable

€ 11.00
[7900161] M12 Universal End Cap

[7900161] M12 Universal End Cap

€ 4.50

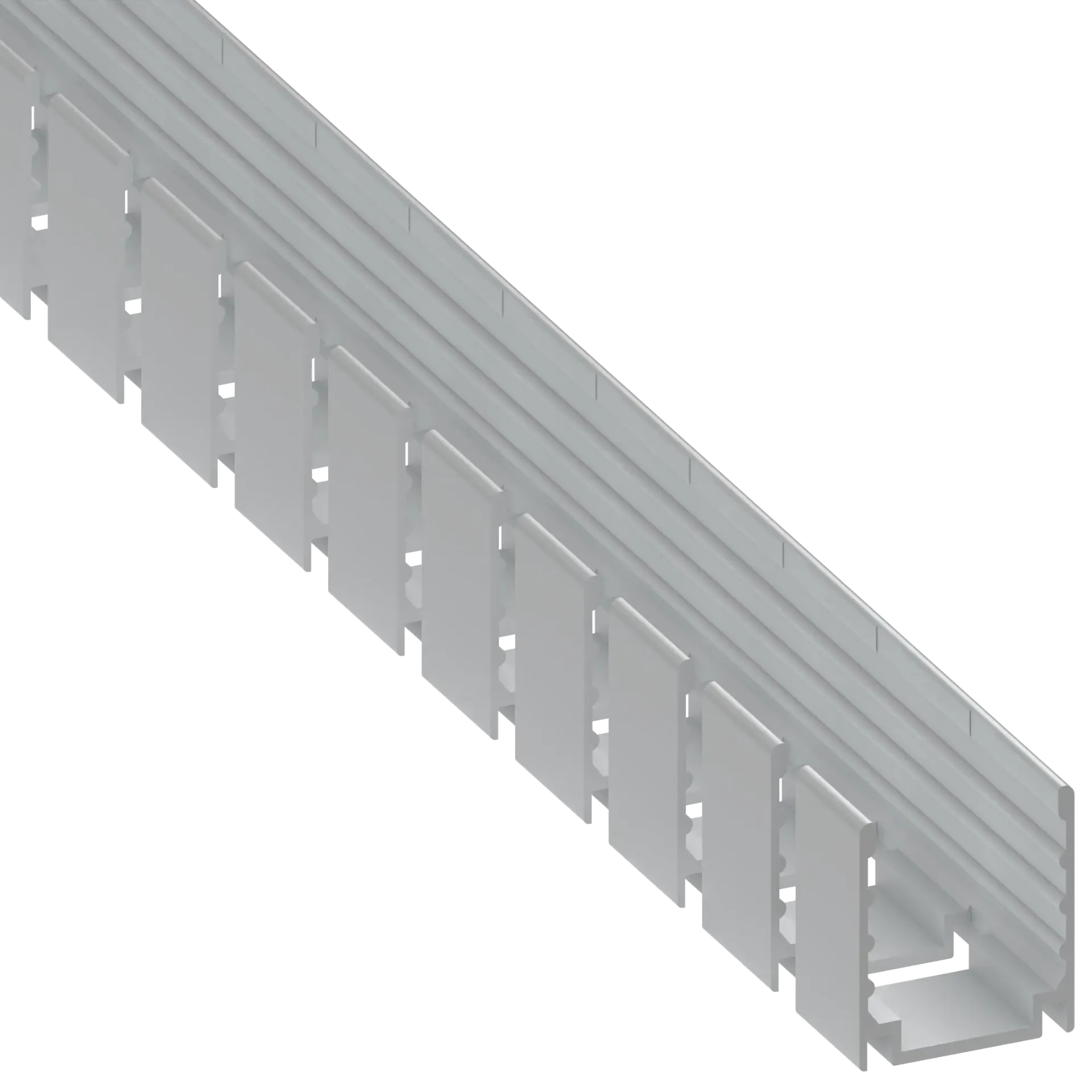

Side Bend Curved Profile Linear Flex Silicone

Side Bend Curved Profile Linear Flex Silicone

€ 20.00

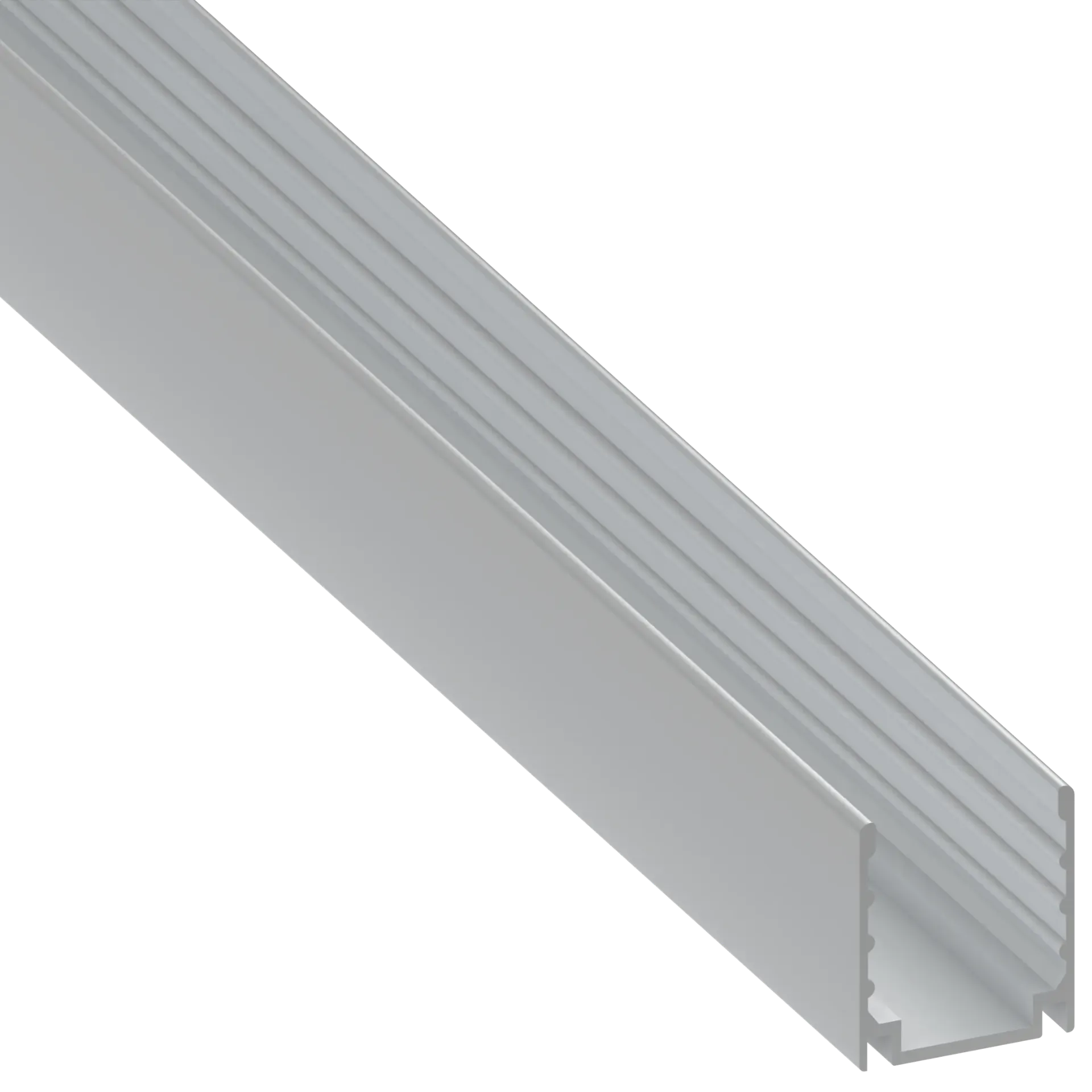

Straight Profile Linear Flex Silicone

Straight Profile Linear Flex Silicone

€ 13.00
