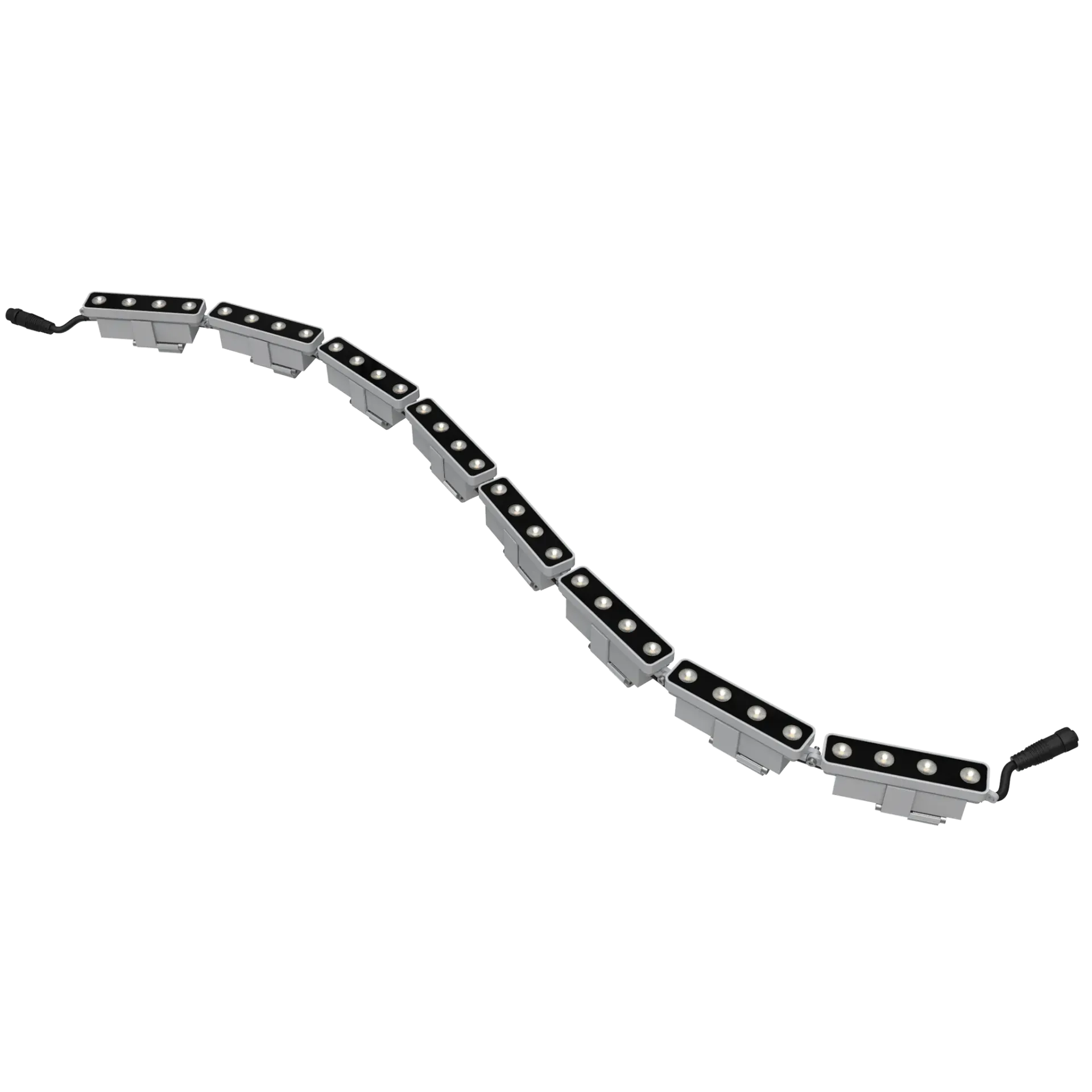

Linear Flex Tunable White

The Linear Flex is a flexible LED luminaire for dynamic architectural and landscape lighting. It adapts seamlessly to linear and curved installations, delivering precise illumination with customizable optics for façades, wall washing, and decorative applications. Designed for versatility, it enables creative lighting across complex geometries in professional environments.

↘ Flexible Installation Format — Adapts to linear runs and complex curved geometries

↘ Individual Pixel Control — SPI technology for precise, programmable lighting effects
€ 0.00 € 0.00

  • Color Range
  • Color / CCT
  • Length
  • Power Consumption
  • LEDs
  • Pixels
  • Channels
  • LED Type
  • CRI
  • CRI
  • Dimming
  • Lumen Maintenance Hours (h)
  • Environment
  • Storage Temperature (°C)
  • Working Temperature (°C)
  • Saltwater Resistant
  • UV Resistant
  • Flame Resistant
  • IK Rating
  • IP Rating
  • Certificates
  • Certificates
  • Certificates
  • Warranty
  • Housing Material
  • Connector Material
  • Connector Type
  • Cover Material
  • Dimensions (mm)
  • Optics
  • Control
  • Input Voltage
  • Housing Color - White
Add to cart
Contact Us

HS Code: 94051190

01
General
12 specifications
Color Range
Tunable White
Color / CCT
2700K+4000K
CRI
≥80 · (Custom on request)
Control
SPI
Channels
24/m
Power Consumption
32 W/m
Input Voltage
24 V
LEDs
32/m
Pixels
8/m
Optics
25°
LED Type
SMD3030
Dimming
16 Bit
02
Installation Conditions & Lighting Data
1 specification
Lumen Maintenance Hours (h)
L70B10 50.000
03
Operating
10 specifications
Environment
Outdoor
Storage Temperature (°C)
-40 to +85
Working Temperature (°C)
-20 to +65
Saltwater Resistant
Yes
UV Resistant
Yes
Flame Resistant
Yes
IK Rating
IK07
IP Rating
IP67
Certificates
CE · RoHS · ETL
Warranty
5 Years
04
Physical
7 specifications
Length
1000 mm
Housing Material
Aluminum (ACD12)
Connector Material
Nylon (PA66)
Connector Type
M12 3Pin
Housing Color
White
Cover Material
Tempered Glass
Dimensions (mm)
29 x 37
01
All Files
5 files
PDF
Linear Flex Specification Sheet Tunable White.pdf
538 KB
Download
PDF
Installation guide Linear Flex.pdf
504 KB
Download
PDF
Linear Flex Accessories Dimensions Sheet.pdf
71 KB
Download
PDF
Linear Flex Dimensions Sheet.pdf
413 KB
Download
ZIP
Product drawings.zip
5.7 MB
Download
5 files
