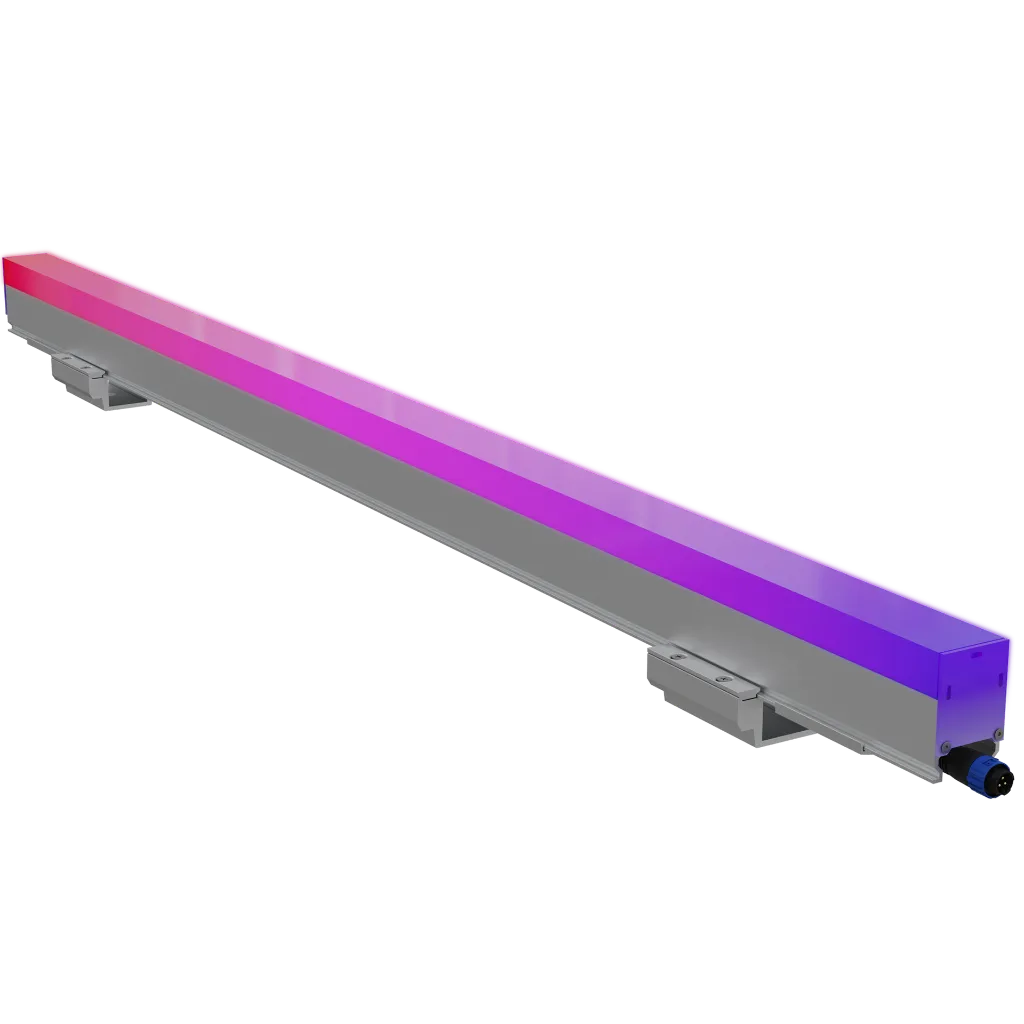

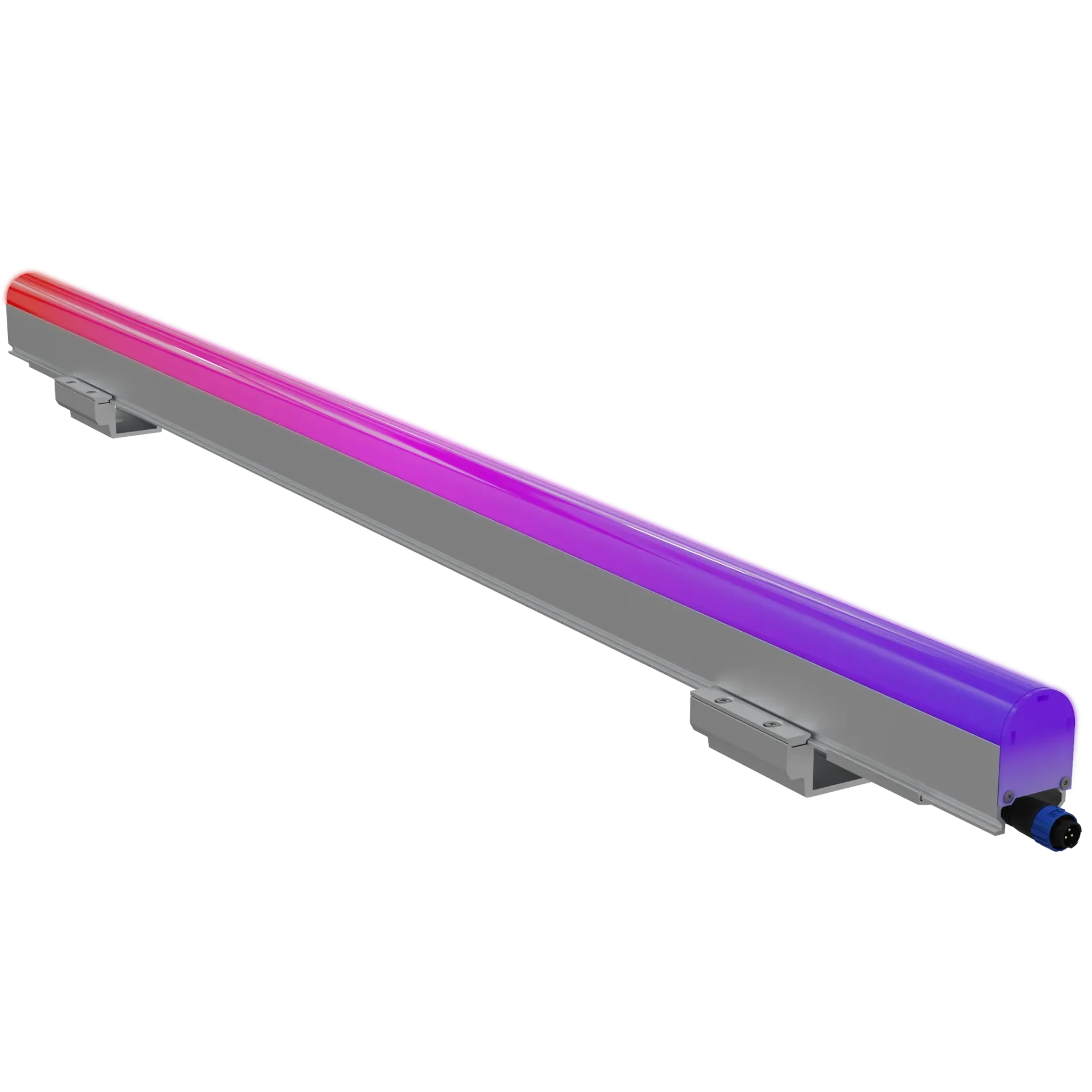

DiGi Linear E-Series 2

The DiGi Linear E-Series 2 is a high-output pixel-controlled linear LED solution for dynamic architectural accents, media façades, and entertainment installations. It delivers smooth, uniform visuals for gradients and mapped effects, while its lightweight aluminum construction and IP68 rating ensure reliable performance in demanding outdoor environments.

↘ Precision and Continuity — Crisp color, balanced white tones, and smooth visual uniformity

↘ Extended Data Performance — Up to 75-meter data transmission at 50 FPS for seamless large-scale control
€ 0.00 € 0.00

  • Color Range
  • Length
  • Power Consumption
  • Input Voltage
  • LEDs
  • Pixels
  • Channels
  • LED Type
  • CRI
  • Dimming
  • Lumen Maintenance Hours (h)
  • Delivered Lumen (lm)
  • Environment
  • Storage Temperature (°C)
  • Working Temperature (°C)
  • Saltwater Resistant
  • Coastal Environmental Proof
  • UV Resistant
  • Flame Resistant
  • IK Rating
  • IP Rating
  • Certificates
  • Certificates
  • Warranty
  • Housing Material
  • Cable Material
  • Connector Material
  • Connector Type
  • Cover Material
  • Color / CCT
  • Shape
  • Housing Color - Grey RAL7047
Add to cart
Contact Us

HS Code: 94051190

01
General
10 specifications
Color Range
Multi Color
Color / CCT
RGBW3000K
CRI
≥80
Channels
48/900mm
Power Consumption
18 W/900mm
Input Voltage
48 V
LEDs
60/900mm
Pixels
12/900mm
LED Type
4in1
Dimming
16 Bit
02
Installation Conditions & Lighting Data
2 specifications
Lumen Maintenance Hours (h)
L80B10 50.000
Delivered Lumen (lm)
1260 (RGBW3000K 1500mm Dome)
03
Operating
11 specifications
Environment
Outdoor
Storage Temperature (°C)
-30 to +90
Working Temperature (°C)
-20 to +85
Saltwater Resistant
Yes
Coastal Environmental Proof
Yes
UV Resistant
Yes
Flame Resistant
Yes
IK Rating
IK08
IP Rating
IP68
Certificates
CE · RoHS
Warranty
5 Years
04
Physical
8 specifications
Length
300 mm
Shape
Square
Housing Material
Aluminum (AW-6063)
Cable Material
PCP
Connector Material
Nylon (PA66)
Connector Type
M16 5Pin
Housing Color
Grey RAL7047
Cover Material
PC
01
All Files
6 files
PDF
DiGi Linear E-Series 2 Multi Color RGBW Specification Sheet.pdf
497 KB
Download
PDF
DiGi Linear E-Series 2 Dimensions Sheet.pdf
185 KB
Download
PDF
Installation guide DiGi Linear E-Series 2.pdf
792 KB
Download
PDF
M16 5Pin Connector Cables DiGi.pdf
687 KB
Download
ZIP
DiGi Linear E-series 2 RGBW3000K IES ldt.zip
23 KB
Download
ZIP
Product drawings.zip
24.7 MB
Download
